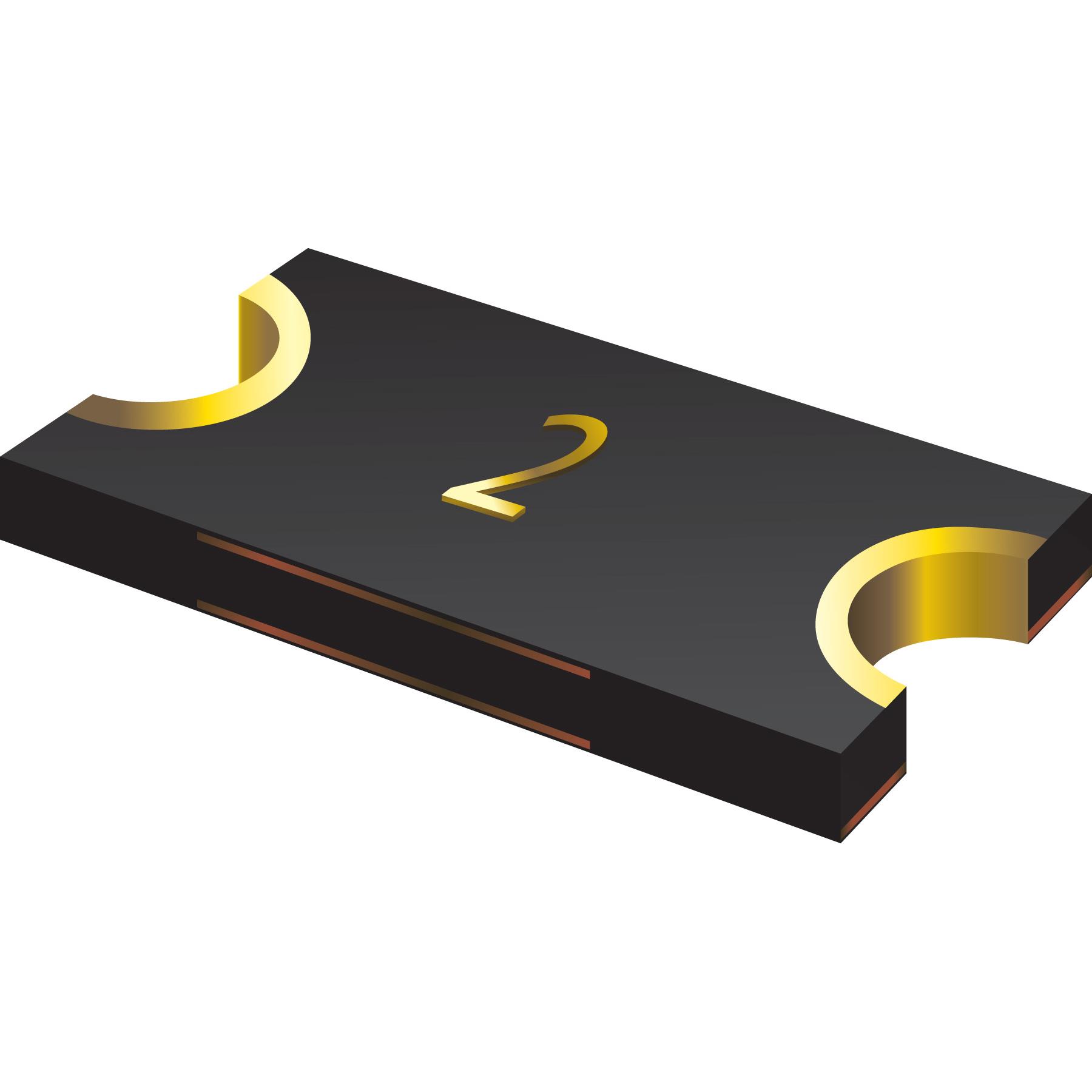

MF-NSMF075/13X-2
ActiveBourns Inc.
FUSE RESET PPTC 1206 0.75A/13.2V
MF-NSMF075/13X-2
ActiveBourns Inc.
FUSE RESET PPTC 1206 0.75A/13.2V
Description
General part information
MF-NSMF075/13X-2
Polymeric PTC Resettable Fuse 13.2V 750 mA Ih Surface Mount 1206 (3216 Metric), Concave
Technical Specifications
Parameters and characteristics for this part
| Specification | MF-NSMF075/13X-2 |
|---|---|
| Approval Agency | cUL, TUV, cURus |
| Current - Hold (Ih) (Max) | 750 mA |
| Current - Max | 100 A |
| Current - Trip (It) | 1.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1206 (3216 Metric), Concave |
| Resistance - Initial (Ri) (Min) | 90 mOhms |
| Resistance - Post Trip (R1) (Max) | 350 mOhms |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Thickness (Max) | 0.047 in |
| Time to Trip | 100 ms |
| Type | Polymeric |
| Voltage - Max | 13.2 V |
