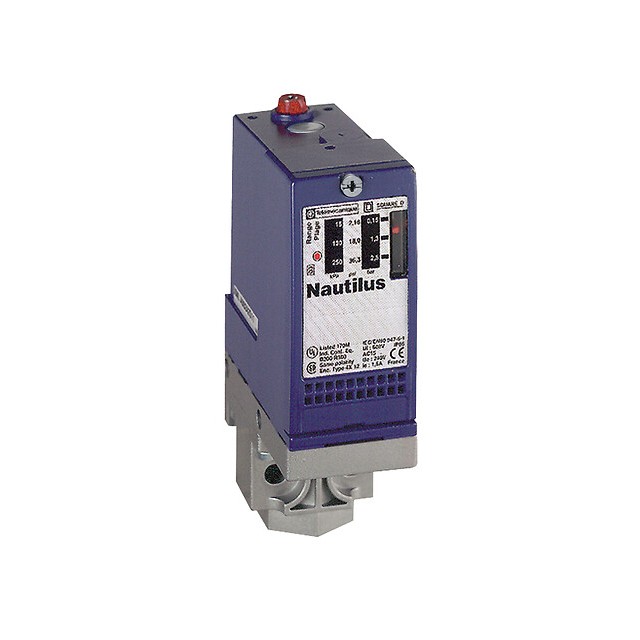

XMLA035A2S14
ActiveSCHNEIDER ELECTRIC
PRESSURE SWITCH, DIFFERENTIAL, 1.5 BAR, 35 BAR, SPST-CO, 120 VAC
XMLA035A2S14
ActiveSCHNEIDER ELECTRIC
PRESSURE SWITCH, DIFFERENTIAL, 1.5 BAR, 35 BAR, SPST-CO, 120 VAC
Description
General part information
XMLA035A2S14
PRESSURE SWITCH, DIFFERENTIAL, 1.5 BAR, 35 BAR, SPST-CO, 120 VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | XMLA035A2S14 |
|---|---|
| Accuracy | 2 % |
| Applications | Industrial Automation |
| Maximum Pressure | 1160.3 PSI |
| Operating Pressure (Max) | 507.63 PSI |
| Operating Pressure (Min) | 21.76 PSI |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Module |
| Port Diameter | 0.25 " |
| Port Feature | PT |
| Port Gender | Female |
| Port Style | Threaded |
| Pressure Type | Switch |
| Termination Style | Screw Terminal |
