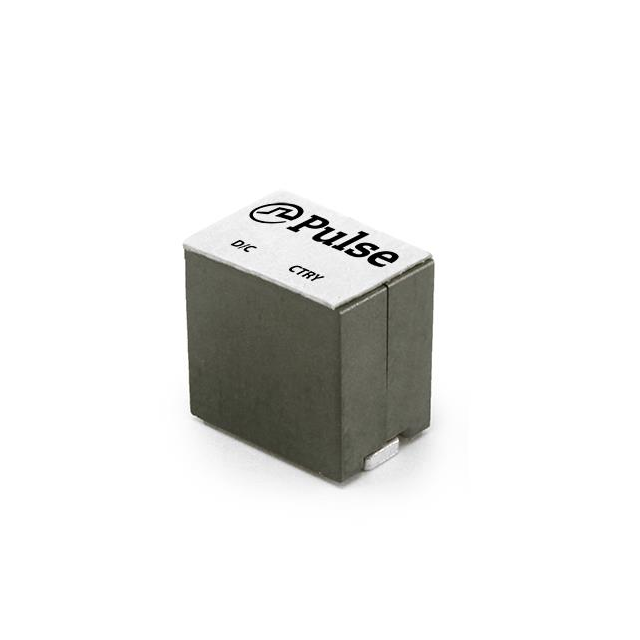

PA4987.102HLT
ActivePulse Electronics
FIXED IND 1UH 16.2A 0.81MOHM SMD
PA4987.102HLT
ActivePulse Electronics
FIXED IND 1UH 16.2A 0.81MOHM SMD
Description
General part information
PA4987.102HLT
1 µH Shielded Inductor 16.2 A 0.81mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4987.102HLT |
|---|---|
| Current - Saturation (Isat) | 20.5 A |
| Current Rating | 16.2 A |
| DC Resistance (DCR) | 0.81 mOhm |
| Height - Seated (Max) | 0.394 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.276 in |
| Tolerance | 15 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
