HR-DUX(10.0AH)F3
ObsoleteFDK America, Inc.

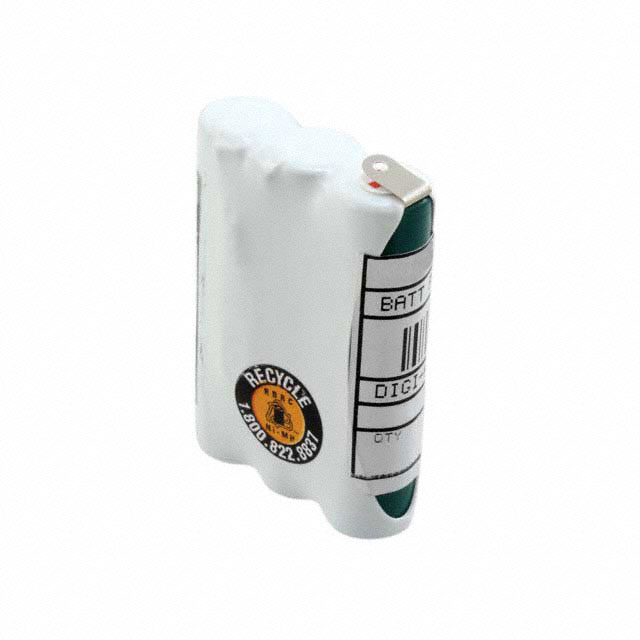

BATTERY PACK NIMH 3.6V D
HR-DUX(10.0AH)F3
ObsoleteFDK America, Inc.
BATTERY PACK NIMH 3.6V D
Description
General part information
HR-DUX(10.0AH)F3
D 3.6 V Nickel Metal Hydride Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | HR-DUX(10.0AH)F3 |
|---|---|
| Battery Cell Size | D |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity (Charge) | 9.3 Ah |
| Note | Battery packs made with NIMH cells include a thermostat. |
| Number of Cells | 3 |
| Rechargeability | Yes |
| Size / Dimension Height | 2.33 in |
| Size / Dimension Length | 4.02 in |
| Size / Dimension Width | 1.34 in |
| Structure | Side to Side |
| Structure Cells | 3 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 3.6 VDC |
| Weight | 544.3 g |
