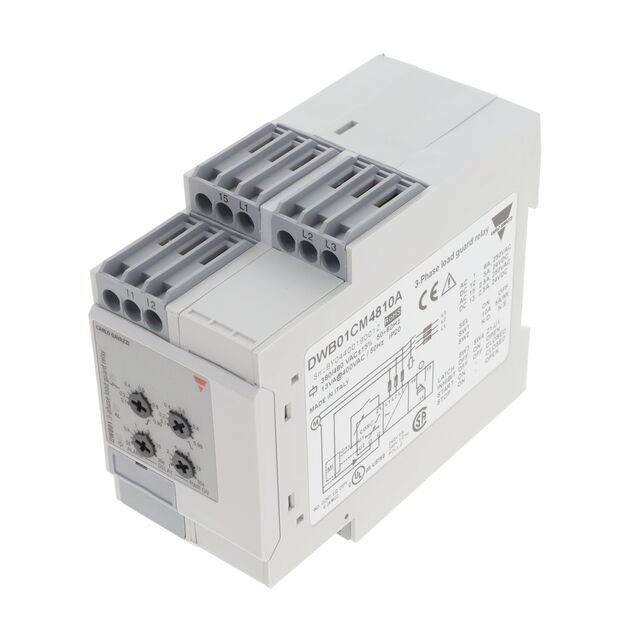

Specification	DWB01CM4810A

Circuit	SPDT (1 Form C)
Contact Rating (Current)	8 A
Delay Time (Maximum)	30 Sec
Delay Time (Minimum)	0.1 Sec
Mounting Type	DIN Rail
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Output Type	Relay
Trip Current (Max)	500 A
Trip Current (Min)	10 A
Trip Status	Low, Energized High
Type	Power Factor, Current Sensing AC
Voltage - Supply (Maximum)	480 VAC
Voltage - Supply (Minimum)	380 VAC
