B82559B6682A027
ActiveEPCOS - TDK Electronics
FIXED IND 6.8UH 34.5A 1.66 MOHM
B82559B6682A027
ActiveEPCOS - TDK Electronics
FIXED IND 6.8UH 34.5A 1.66 MOHM
Description
General part information
B82559B6682A027

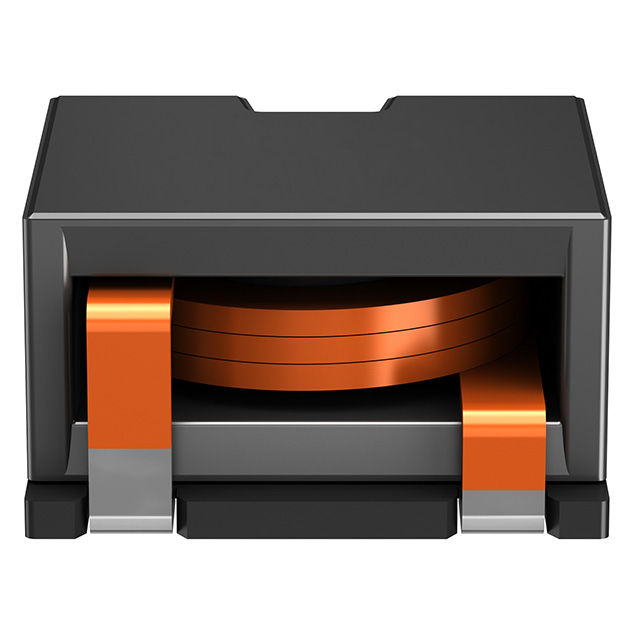

6.8 µH Shielded Drum Core, Wirewound Inductor 34.5 A 1.66mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82559B6682A027 |
|---|---|
| Current - Saturation (Isat) | 44 A |
| Current Rating | 34.5 A |
| DC Resistance (DCR) | 1.66 mOhm |
| Height - Seated (Max) | 0.636 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 1.094 in |
| Size / Dimension Width | 1.016 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
