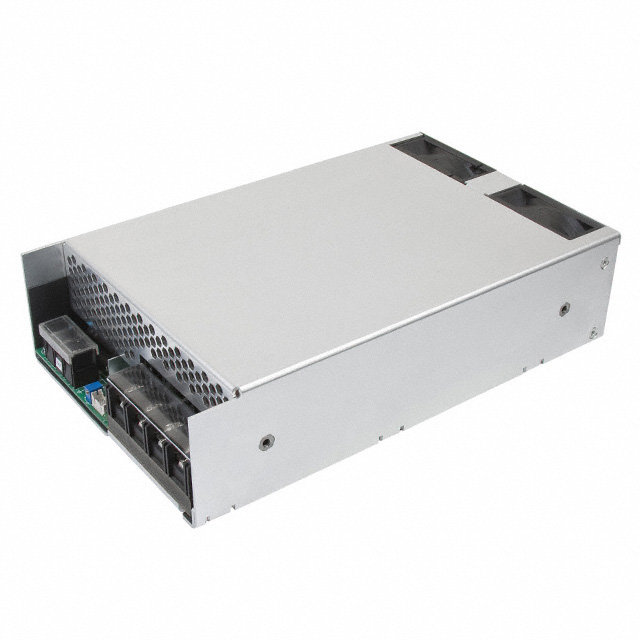

SHP1000PS12
ActiveXP POWER
AC/DC CONVERTER 12V 1000W
Deep-Dive with AI
Search across all available documentation for this part.
SHP1000PS12
ActiveXP POWER
AC/DC CONVERTER 12V 1000W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SHP1000PS12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB |
| Current - Output 1 [custom] | 83 A |
| Efficiency | 85 % |
| Features | Universal Input, Remote On/Off, Adjustable Output, Load Sharing, Standby Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 1 kW |
| Size / Dimension [x] | 9.55 " |
| Size / Dimension [x] | 242.6 mm |
| Size / Dimension [y] | 149.8 mm |
| Size / Dimension [y] | 5.9 " |
| Size / Dimension [z] | 61 mm |
| Size / Dimension [z] | 2.4 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 579.06 | |
| 5 | $ 561.69 | |||
| 10 | $ 544.32 | |||
| 25 | $ 521.15 | |||
| 100 | $ 486.41 | |||
Description
General part information
SHP1000PS12
Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
