Description
General part information

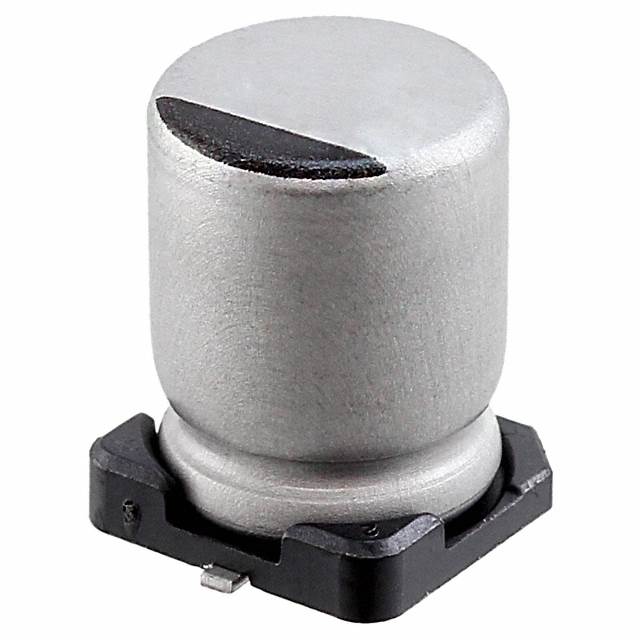

UWS1C331MCL1GS
330 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UWS1C331MCL1GS |
|---|---|
| Applications | High Temperature Reflow |
| Capacitance | 330 µF |
| Height - Seated (Max) | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - SMD |
| Ripple Current | 270 mA, 351 mA |
| Size / Dimension Diameter | 0.315 in |
| Surface Mount Land Length | 0.327 in |
| Surface Mount Land Width | 0.327 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
