Description
General part information

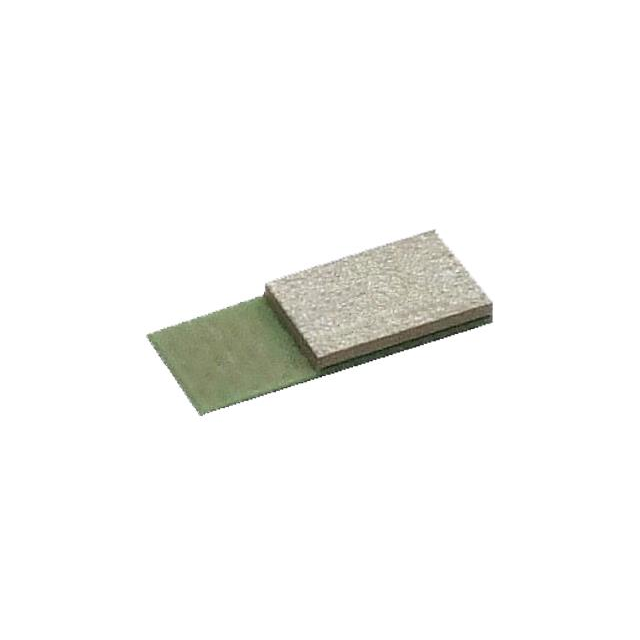

EYSNSNZWW
802.15.4, Bluetooth Bluetooth v5.2, Thread, Zigbee® Transceiver Module 2.402GHz ~ 2.48GHz Integrated, Trace Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | EYSNSNZWW |
|---|---|
| Antenna Type | Integrated, Trace |
| Data Rate | 2 Mbps |
| Frequency (Max) | 2.48 GHz |
| Frequency (Min) | 2.402 GHz |
| Memory Size | 24 kB |
| Memory Size (Flash) | 192 kB |
| Memory Type | Flash, RAM |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power - Output | 4 dBm |
| Protocol | Thread, Zigbee®, Bluetooth v5.2 |
| RF Family/Standard | 802.15.4, Bluetooth |
| Serial Interfaces | UART, PDM, I2C, ADC, SPI |
| Utilized IC / Part | nRF52811 |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.7 V |
