PIN CONT 20DF L.P.-745229-4

745229-4

Active
TE Connectivity AMP Connectors

D SUB CONTACT, HDP-20 SERIES D SUB CONNECTORS, PIN, BRASS, GOLD PLATED CONTACTS, 18 AWG, 22 AWG

Find alt

Description

General part information

745229-4

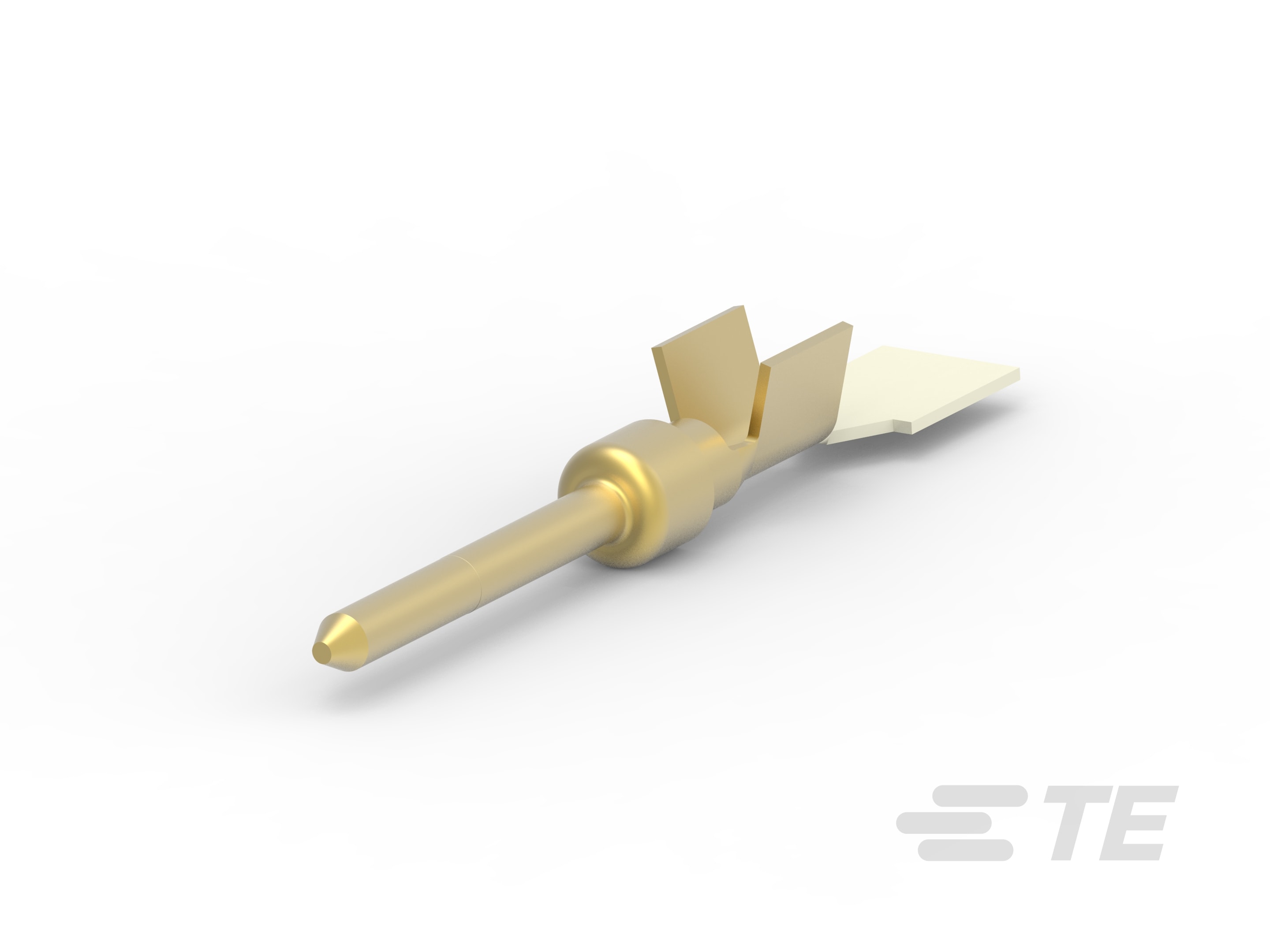

The 745229-4 is a pin Signal Contact made of brass with gold plated finish. It accepts 22 to 18AWG wire size. The crimp snap-in standard contact is suitable for AMPLIMITE HDP-20 series D-sub connectors.

Technical Specifications

Parameters and characteristics for this part

Specification745229-4
Contact FinishGold
Contact Finish Thickness30 µin
Contact MaterialBrass
Contact TerminationCrimp
Pin or SocketPin
TypeStamped
Wire Gauge (AWG) (Max)22 AWG
Wire Gauge (AWG) (Min)18 AWG
