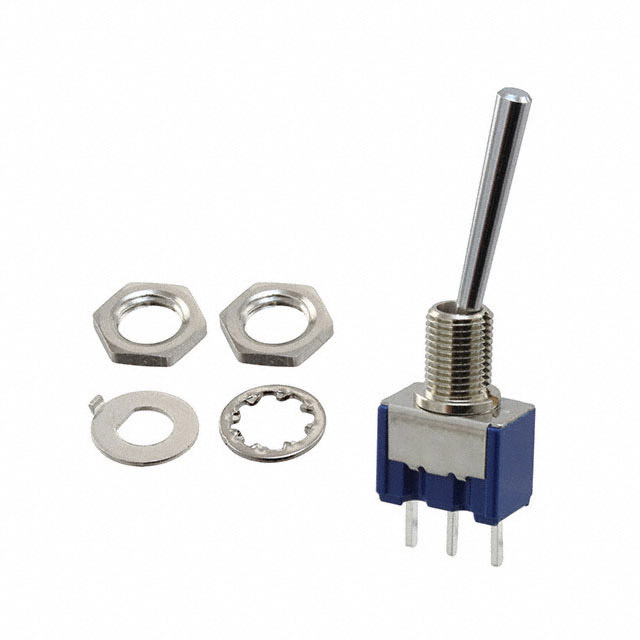

8D1012-Z

Obsolete

Nidec Components Corporation

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Obsolete

Nidec Components Corporation

SWITCH TOGGLE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	8D1012-Z

Actuator Length [x]	21.3 mm
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Circuit	Features	Termination Style	Voltage Rating - DC	Actuator Type	Switch Function	Electrical Life	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Illumination	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Bushing Thread
Nidec Components Corporation 8D1012-Z	SPDT	Sealed - Flux Protection	PC Pin	30 V	Standard Round	On-On	50000 Cycles	6.5 mm	21.3 mm	Non-Illuminated	4 A 6 A	-30 ░C	85 °C	125 V	1/4-40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
