B82111B0000C017
ObsoleteEPCOS - TDK Electronics
FIXED IND 6UH 6A 10 MOHM TH
B82111B0000C017
ObsoleteEPCOS - TDK Electronics
FIXED IND 6UH 6A 10 MOHM TH
Description
General part information
B82111B0000C017

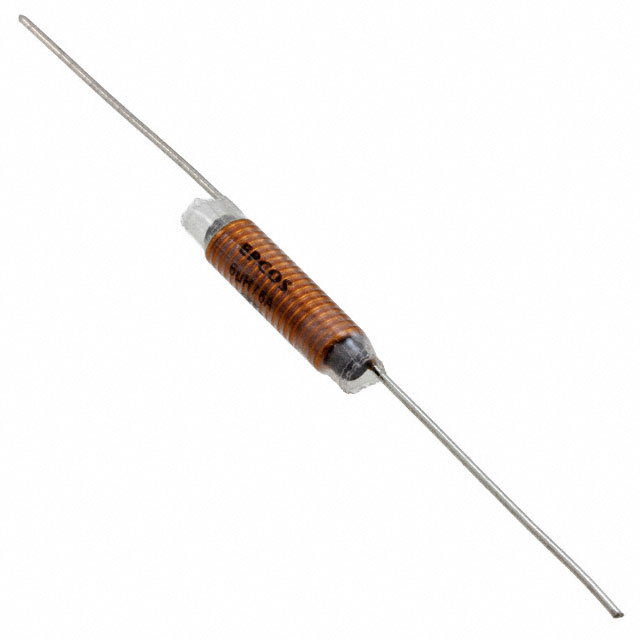

6 µH Unshielded Drum Core, Wirewound Inductor 6 A 10mOhm Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82111B0000C017 |
|---|---|
| Current Rating | 6 A |
| DC Resistance (DCR) | 10 mOhm |
| Frequency - Self Resonant | 200 MHz |
| Inductance | 6 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.276 in |
| Size / Dimension Length | 0.965 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
