3-640623-8
ActiveTE Connectivity AMP Connectors
CONN RCPT 8POS IDC 28AWG TIN
3-640623-8
ActiveTE Connectivity AMP Connectors
CONN RCPT 8POS IDC 28AWG TIN
Description
General part information
3-640623-8

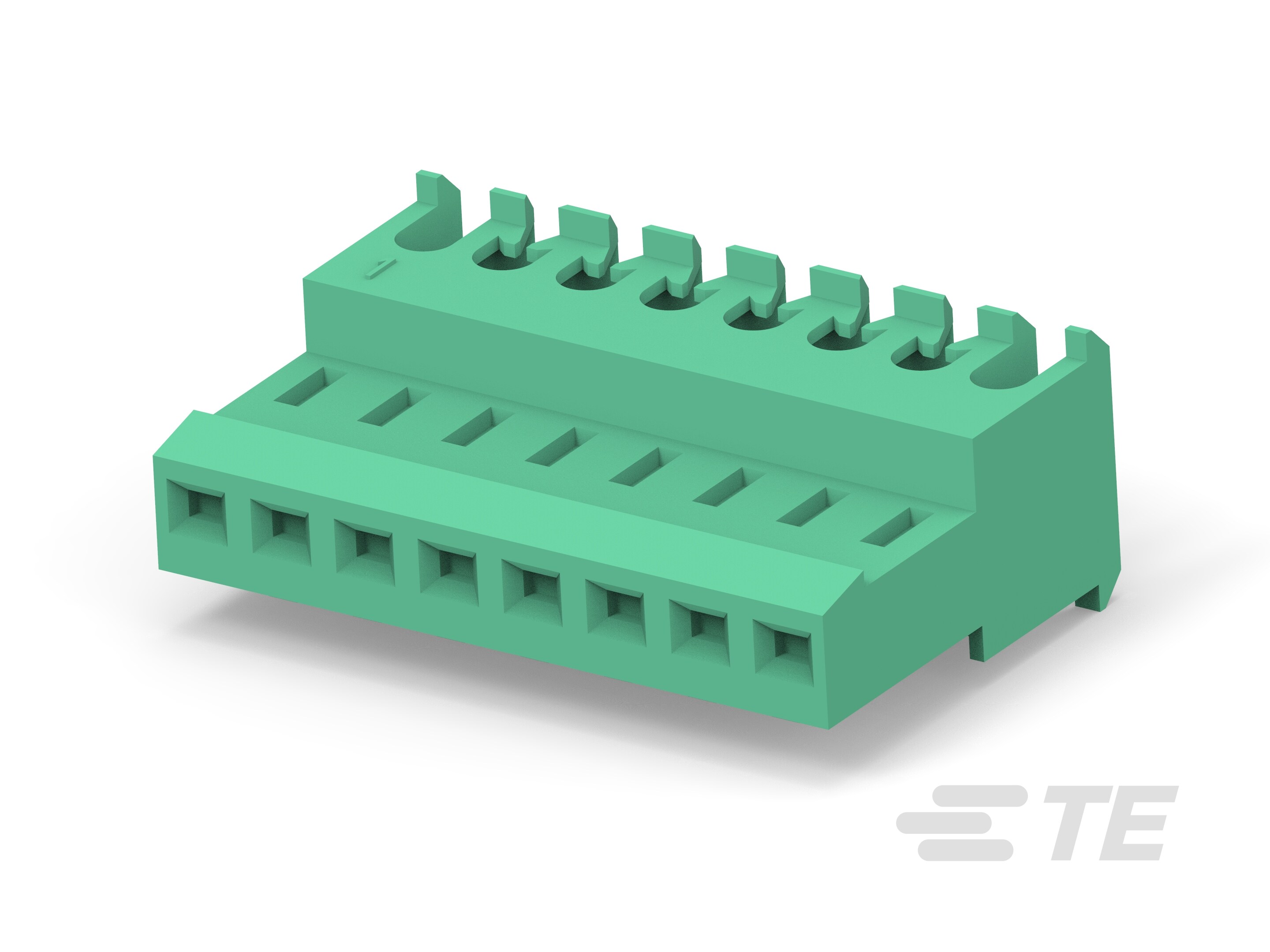

8 Position, Receptacle, Connector Assembly, Insulation Displacement (IDC), Wire-to-Board, Tin (Sn), Normal, UL 94V-2, MTA 100
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-640623-8 |
|---|---|
| Cable Termination | IDC |
| Color | Green |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Finish Thickness | 80 µin |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Features | Feed Through |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Pitch | 0.1 in |
| Wire Gauge | 28 AWG |
| Wire Type | Ribbon Cable, Discrete |
