Description
General part information

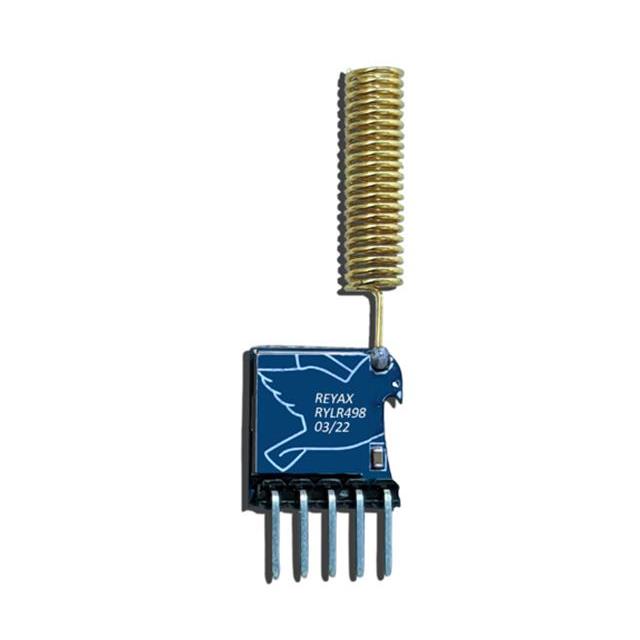

RYLR498
Transceiver Module 410MHz ~ 525MHz Antenna Included
Technical Specifications
Parameters and characteristics for this part
| Specification | RYLR498 |
|---|---|
| Antenna Type | Antenna Included |
| Current - Receiving | 17.5 mA |
| Current - Transmitting | 140 mA |
| Frequency (Max) | 525 MHz |
| Frequency (Min) | 410 MHz |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power - Output | 22 dBm |
| Sensitivity | -129 dBm |
| Serial Interfaces | UART |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.3 V |
