SM3660
ActiveFairview Microwave
ADAPT JACK-JACK MCX 1.35 VSWR
SM3660
ActiveFairview Microwave
ADAPT JACK-JACK MCX 1.35 VSWR
Description
General part information
SM3660

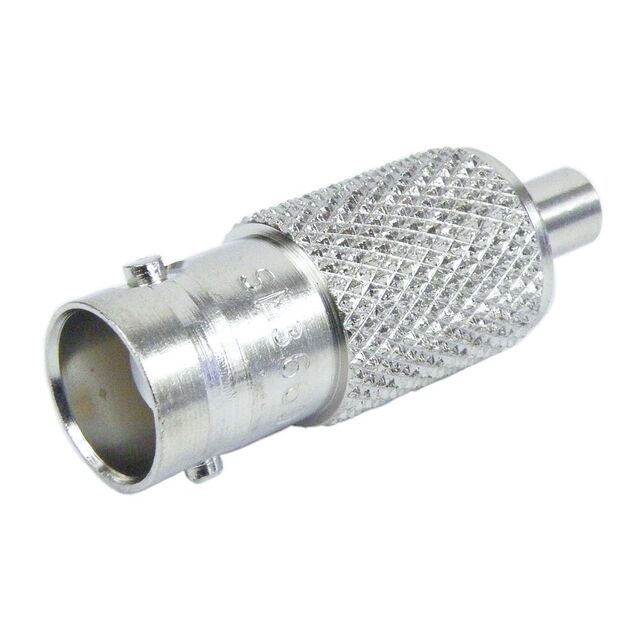

Adapter Coaxial Connector BNC Jack, Female Socket To MCX Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM3660 |
|---|---|
| Adapter Series | BNC to MCX |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | MCX Jack |
| Fastening Type | Threaded, Bayonet Lock |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
