LCCA30137-FT5
ActivePasternack
N MALE TO N MALE CABLE USING FOR
LCCA30137-FT5
ActivePasternack
N MALE TO N MALE CABLE USING FOR
Description
General part information
LCCA30137-FT5

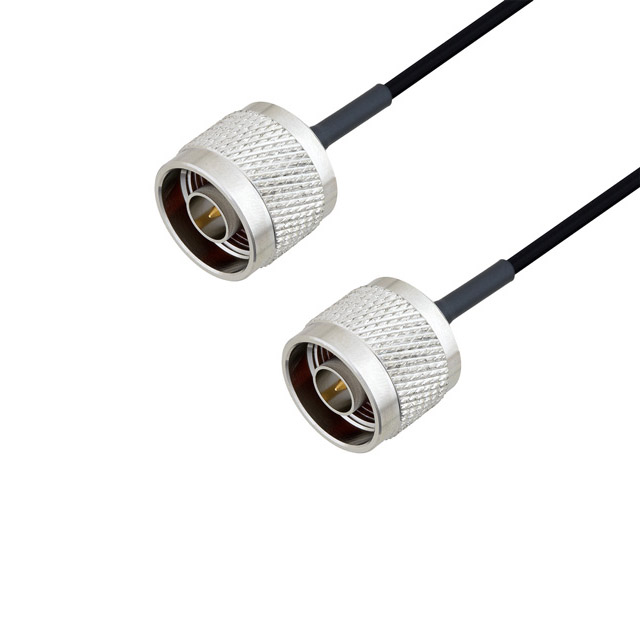

Cable Assembly Coaxial N-Type to N-Type LC085TBJ 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30137-FT5 |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TBJ |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 11 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
