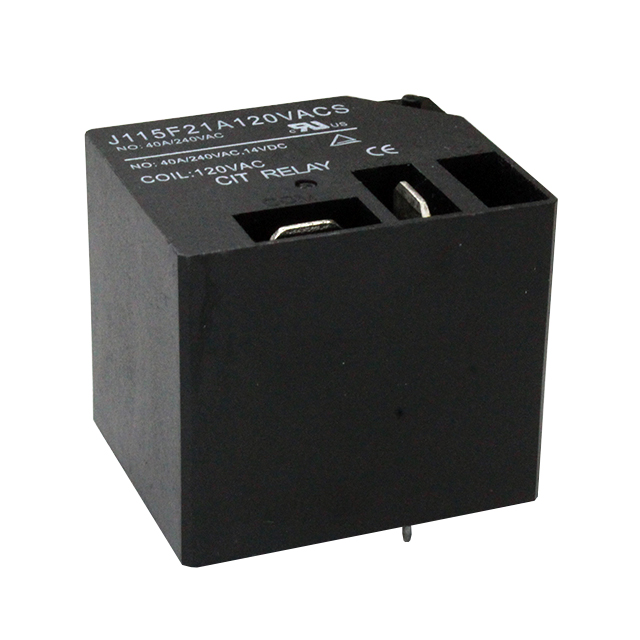

Specification	J115F21A120VACS

Approval Agency	cURus, TUV
Coil Current	39.5 mA
Coil Insulation	Class F
Coil Resistance	3.04 kOhms
Coil Type	Non Latching
Coil Voltage	120 V
Contact Form	SPST-NO
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	40 A
Form A Count	1
Load - Max Switching (Apparent Power)	9600 VA, 11080 VA
Load - Max Switching (Real Power)	1120 W, 4400 W
Mounting Type	Through Hole
Must Operate Voltage	90 VAC
Must Release Voltage	36 VDC
Operate Time	15 ms
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Quick Connect Size (0.250")	0.25 in
Relay Type	General Purpose
Release Time	10 ms
Seal Rating	Fully, Sealed
Switching Voltage AC (Max)	277 VAC
Switching Voltage DC (Max)	110 VDC
Termination Style	Quick Connect, PC Pin

J115F21 Series

Part	Quick Connect Size (0.250")	Termination Style	Contact Form	Load - Max Switching (Real Power)	Load - Max Switching (Apparent Power)	Switching Voltage AC (Max)	Switching Voltage DC (Max)	Seal Rating	Mounting Type	Relay Type	Release Time	Coil Current	Approval Agency	Operate Time	Must Release Voltage	Must Operate Voltage	Contact Material	Contact Rating (Current)	Coil Type	Operating Temperature (Max)	Operating Temperature (Min)	Coil Voltage	Coil Insulation	Coil Resistance	Form A Count
CIT Relay and Switch J115F21CL12VDCS.9	0.25 in	PC Pin Quick Connect	1 C Form SPDT	1120 W 4400 W	9600 VA 11080 VA	277 VAC	110 VDC	Fully Sealed	Through Hole	General Purpose	10 ms	0.075 A	cURus TUV	15 ms	1.2 V	9 VDC	Silver Tin Oxide (AgSnO)	40 A	Non Latching	125 °C	-55 °C	12 VAC	Class F	160 Ohms
CIT Relay and Switch J115F21A110VACS	0.25 in	PC Pin Quick Connect	SPST-NO	1120 W 4400 W	9600 VA 11080 VA	277 VAC	110 VDC	Fully Sealed	Through Hole	General Purpose	10 ms	46.6 mA	cURus TUV	15 ms	33 VAC	82.5 VDC	Silver Tin Oxide (AgSnO)	40 A	Non Latching	125 °C	-55 °C	110 V	Class F	2.36 kOhms	1
CIT Relay and Switch J115F21CH12VDCS61.5	0.25 in	PC Pin Quick Connect	1 C Form SPDT	5500 W	13850 VA	277 VAC	110 VDC	Fully Sealed	Through Hole	General Purpose	10 ms	125 mA	cURus	15 ms	1.2 V	9 VDC	Silver Tin Oxide (AgSnO)	50 A	Non Latching	125 °C	-55 °C	12 VAC	Class F	96 Ohms
CIT Relay and Switch J115F21CH24VDCS61.5	0.25 in	PC Pin Quick Connect	1 C Form SPDT	5500 W	13850 VA	277 VAC	110 VDC	Fully Sealed	Through Hole	General Purpose	10 ms	62.5 mA	cURus	15 ms	2.4 V	18 VDC	Silver Tin Oxide (AgSnO)	50 A	Non Latching	125 °C	-55 °C	24 VDC	Class F	384 Ohms
CIT Relay and Switch J115F21C5VDCS.9	0.25 in	PC Pin Quick Connect	1 C Form SPDT	1120 W 4400 W	9600 VA 11080 VA	277 VAC	110 VDC	Fully Sealed	Through Hole	General Purpose	10 ms	178.6 mA	cURus TUV	15 ms	0.5 VDC	3.75 VDC	Silver Tin Oxide (AgSnO)	40 A	Non Latching	125 °C	-55 °C	5 V	Class F	28 Ohms
CIT Relay and Switch J115F21A9VDCS.9	0.25 in	PC Pin Quick Connect	SPST-NO	1120 W 4400 W	9600 VA 11080 VA	277 VAC	110 VDC	Fully Sealed	Through Hole	General Purpose	10 ms	100 mA	cURus TUV	15 ms	0.9 VDC	6.75 VDC	Silver Tin Oxide (AgSnO)	40 A	Non Latching	125 °C	-55 °C	9 VDC	Class F	90 Ohms	1
CIT Relay and Switch J115F21C24VDCS.9	0.25 in	PC Pin Quick Connect	1 C Form SPDT	1120 W 4400 W	9600 VA 11080 VA	277 VAC	110 VDC	Fully Sealed	Through Hole	General Purpose	10 ms	0.0375 A	cURus TUV	15 ms	2.4 V	18 VDC	Silver Tin Oxide (AgSnO)	40 A	Non Latching	125 °C	-55 °C	24 VDC	Class F	640 Ohms
CIT Relay and Switch J115F21C24VACS	0.25 in	PC Pin Quick Connect	1 C Form SPDT	1120 W 4400 W	9600 VA 11080 VA	277 VAC	110 VDC	Fully Sealed	Through Hole	General Purpose	10 ms	200 mA	cURus TUV	15 ms	7.2 VAC	18 VDC	Silver Tin Oxide (AgSnO)	40 A	Non Latching	125 °C	-55 °C	24 VDC	Class F	120 Ohms
CIT Relay and Switch J115F21AL220VACS	0.25 in	PC Pin Quick Connect	SPST-NO	1120 W 4400 W	9600 VA 11080 VA	277 VAC	110 VDC	Fully Sealed	Through Hole	General Purpose	10 ms	16.3 mA	cURus TUV	15 ms	66 VAC	165 VAC	Silver Tin Oxide (AgSnO)	40 A	Non Latching	125 °C	-55 °C	220 V	Class F	13.49 kOhms	1
CIT Relay and Switch J115F21CL110VDCS.9	0.25 in	PC Pin Quick Connect	1 C Form SPDT	1120 W 4400 W	9600 VA 11080 VA	277 VAC	110 VDC	Fully Sealed	Through Hole	General Purpose	10 ms	8.2 mA	cURus TUV	15 ms	11 VDC	82.5 VDC	Silver Tin Oxide (AgSnO)	40 A	Non Latching	125 °C	-55 °C	110 V	Class F	13.445 kOhms
