P040-014
ActiveEaton Tripp Lite
MAINS POWER CORD, IEC 60320 C19, NEMA L6-20P, 4.3 M, 20 A, 250 VAC, BLACK
P040-014
ActiveEaton Tripp Lite
MAINS POWER CORD, IEC 60320 C19, NEMA L6-20P, 4.3 M, 20 A, 250 VAC, BLACK
Description
General part information
P040-014

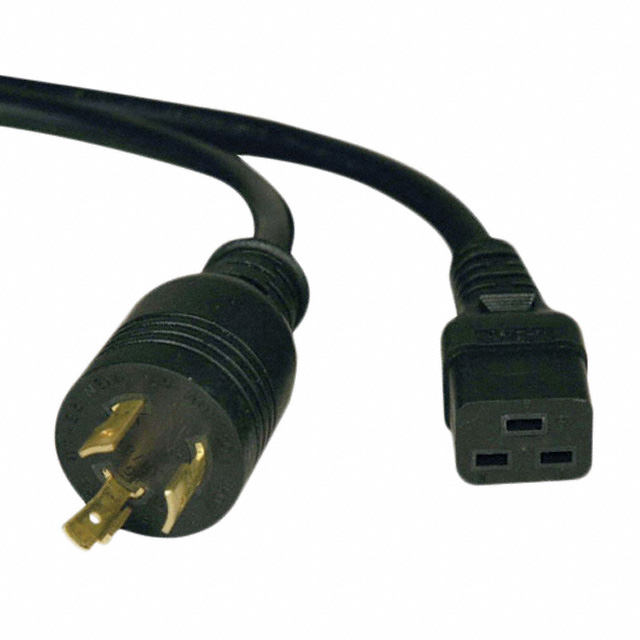

The P040-014 is a heavy duty Power Extension Cord with IEC 60320 C19 to NEMA L6-20P connectors. It is ideal for use with PDU and UPS.
Technical Specifications
Parameters and characteristics for this part
| Specification | P040-014 |
|---|---|
| 1st Connector | NEMA L6-20P |
| 2nd Connector | IEC 320-C19 |
| Approval Agency Marking | cUL, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 20 A |
| Length | 14 ft |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating (AC) Maximum | 250 VAC |
| Voltage Rating (AC) Minimum | 100 VAC |
| Wire Gauge | 12 AWG |
