N-700AACLF6
UnknownPanasonic Energy
BATTERY PACK NICD 7.2V AA
N-700AACLF6
UnknownPanasonic Energy
BATTERY PACK NICD 7.2V AA
Description
General part information
N-700AACLF6

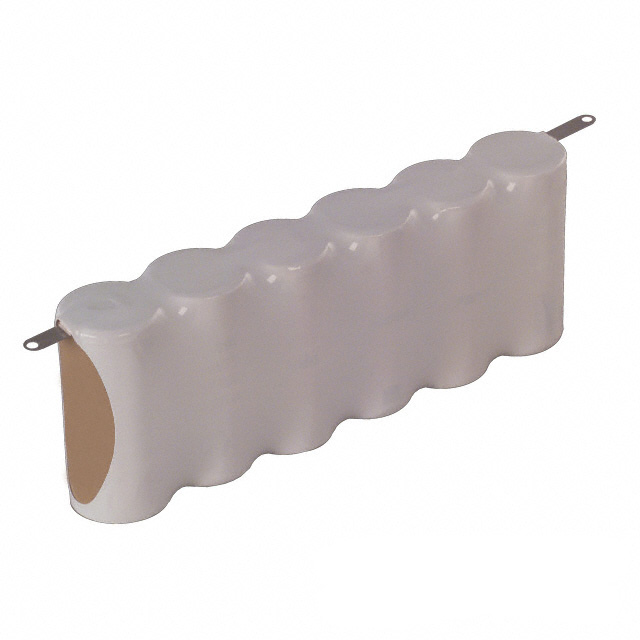

AA 7.2 V Nickel Cadmium Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | N-700AACLF6 |
|---|---|
| Battery Cell Size | AA |
| Battery Chemistry | Nickel Cadmium |
| Capacity (Charge) | 700 mAh |
| Number of Cells | 6 |
| Rechargeability | Yes |
| Size / Dimension Height | 1.91 in |
| Size / Dimension Length | 3.31 in |
| Size / Dimension Width | 0.55 in |
| Structure | Side to Side |
| Structure Cells | 6 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 7.2 VDC |
| Weight | 137.89 g |
