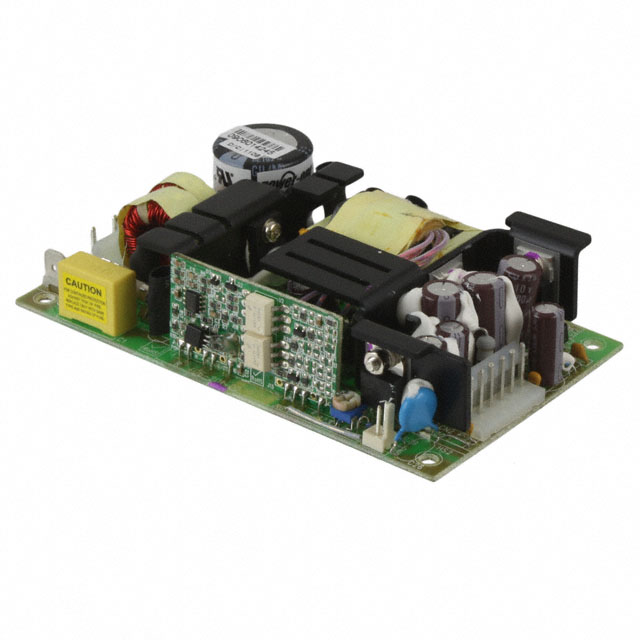

BLP55-1005
ObsoleteBel Fuse Inc.
AC/DC CONVERTER 5V 55W
BLP55-1005
ObsoleteBel Fuse Inc.
AC/DC CONVERTER 5V 55W
Description
General part information
BLP55-1005
Open Frame AC DC Converters 1 Output 5V 85 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | BLP55-1005 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE |
| Current - Output 1 | 8 A |
| Efficiency | 70 % |
| Features | Universal Input, Adjustable Output, Remote Sense |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 55 W |
| Size / Dimension Height | 1.23 in |
| Size / Dimension Length | 5 in |
| Size / Dimension Width | 3 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 4242 V |
| Voltage - Output 1 | 5 V |
