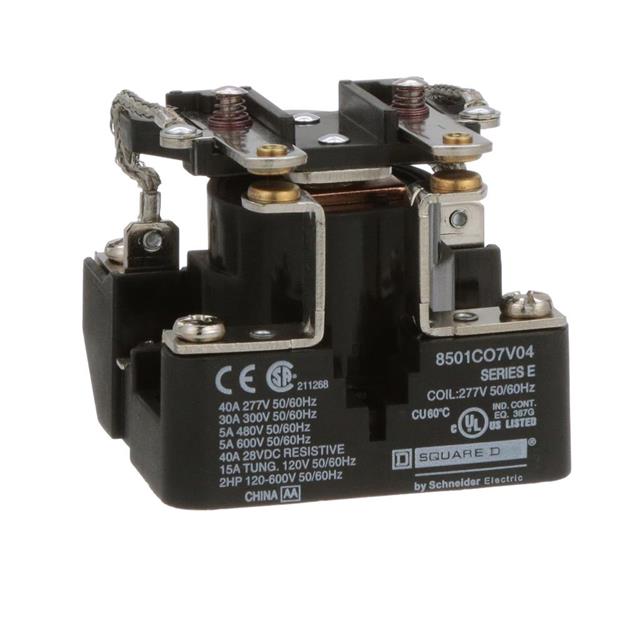

8501CO7V04
ObsoleteSCHNEIDER ELECTRIC
POWER RELAY, TYPE C, 1.5 HP, 30A
8501CO7V04
ObsoleteSCHNEIDER ELECTRIC
POWER RELAY, TYPE C, 1.5 HP, 30A
Description
General part information
8501CO Series
General Purpose Relay DPST-NO (2 Form A) 277VAC Coil Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 8501CO7V04 |
|---|---|
| Coil Type | Non Latching |
| Coil Voltage | 277 V |
| Contact Form | DPST-NO |
| Contact Rating (Current) | 30 A |
| Form A Count | 2 |
| Load - Max Switching (Apparent Power) | 18000 VA |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -30 °C |
| Relay Type | General Purpose |
| Switching Voltage AC (Max) | 600 VAC |
| Termination Style | Screw Terminal |
