9001KP1R6
ActiveSCHNEIDER ELECTRIC

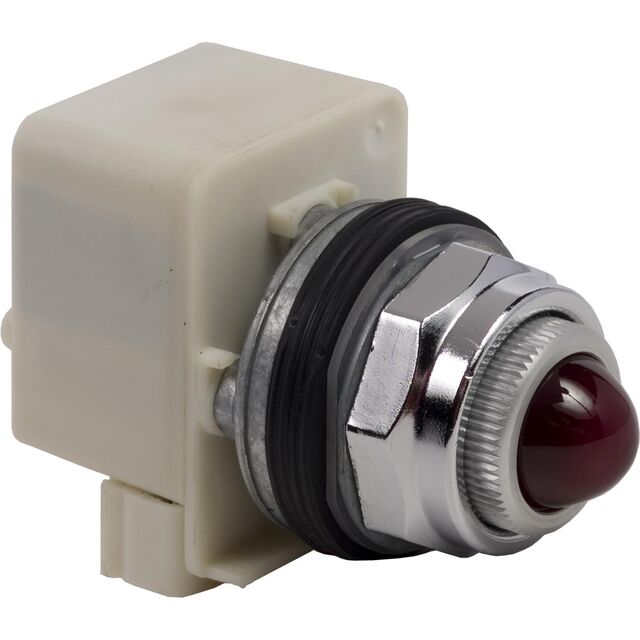

INCANDESCENT LAMP, SCREW CLAMP TERMINALS, RED, BA9S, 30 MM, 120 VAC, DOME, HARMONY 9001K SERIES
9001KP1R6
ActiveSCHNEIDER ELECTRIC
INCANDESCENT LAMP, SCREW CLAMP TERMINALS, RED, BA9S, 30 MM, 120 VAC, DOME, HARMONY 9001K SERIES
Description
General part information
9001KP1R6
Incandescent Panel Indicator 110V ~ 120V Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001KP1R6 |
|---|---|
| Ingress Protection | 13, 12, 4, 2, 6, 1, 3, NEMA 3R |
| Lens Color | Red |
| Lens Diameter | 30 mm |
| Lens Style | Round, Domed Top |
| Panel Cutout Dimension | 1.18 " |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Termination Style | Screw Terminal |
| Type | Incandescent |
| Voltage (Max) | 120 V |
| Voltage (Min) | 110 V |
