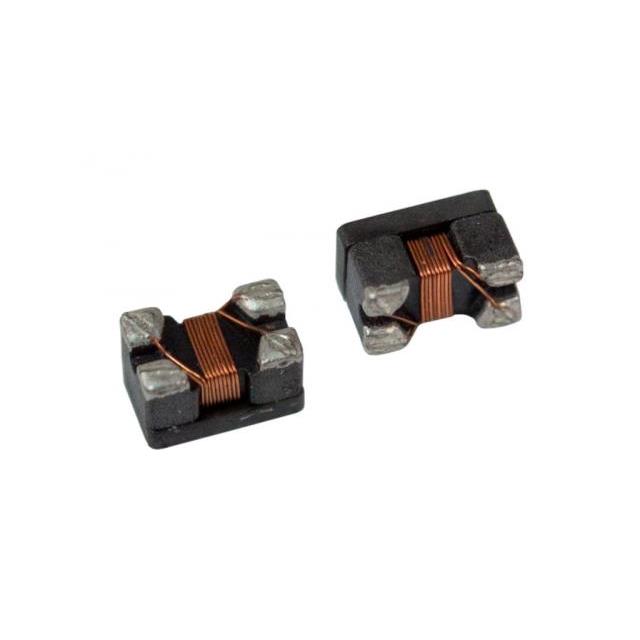

CM1210C113R-1A
ActiveLaird Technologies EMI
CMC 10UH 300MA 2LN 550OHM SMD
CM1210C113R-1A
ActiveLaird Technologies EMI
CMC 10UH 300MA 2LN 550OHM SMD
Description
General part information
CM1210C113R-1A
10 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 550 Ohms @ 10 MHz 300mA DCR 400mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM1210C113R-1A |
|---|---|
| Current Rating (Max) | 300 mA |
| DC Resistance (DCR) (Max) | 400 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.098 in |
| Impedance | 550 Ohms |
| Inductance | 10 µH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Voltage Rating - DC | 80 VDC |
