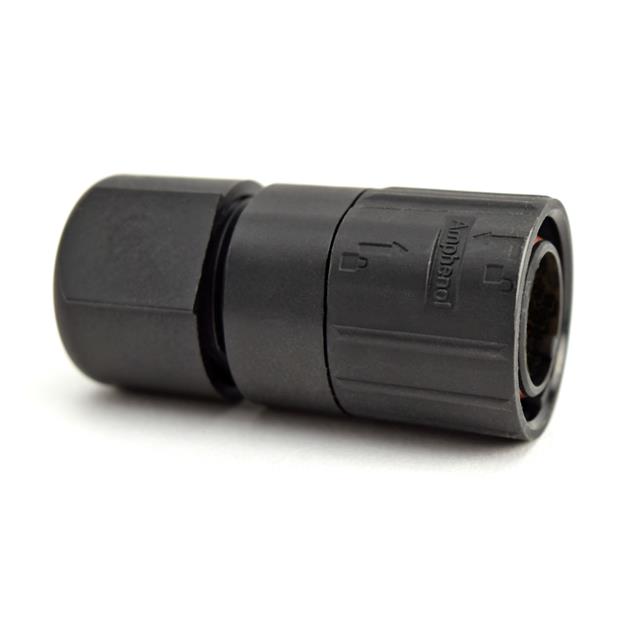

Specification	C09131H1072025U

Backshell Material, Plating	Thermoplastic
Cable Opening (Max)	0.413 in
Cable Opening (Min)	0.335 in
Color	Black
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Current Rating	7 A
Fastening Type	Threaded
Features	Coupling Nut, Backshell
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Thermoplastic
Shell Size - Insert	M16-7
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	32 V

C09131H Series

Part	Shielding	Backshell Material, Plating	Voltage Rating	Contact Finish - Mating	Current Rating	Cable Opening (Min)	Cable Opening (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Shell Material	Color	Fastening Type	Termination	Material Flammability Rating	Ingress Protection IP Rating	Ingress Protection Description	Features	Mounting Type	Primary Material	Number of Positions	Connector Type	Orientation	Insert Material	Shell Size - Insert
McGill Microwave Systems C09131H0042005U	Unshielded	Thermoplastic	150 VDC	Gold	10 A	0.157 in	0.335 in	100 °C	-40 °C	Thermoplastic	Black	Threaded	Solder Cup	UL94 V-0	IP68	Dust Tight Waterproof	Backshell Coupling Nut	Free Hanging (In-Line)	Plastic	4	Male Pins Plug	Keyed	Thermoplastic	M16-4
McGill Microwave Systems C09131H1052005U	Unshielded	Thermoplastic	32 V	Gold	7 A	0.157 in	0.335 in	100 °C	-40 °C	Thermoplastic	Black	Threaded	Solder Cup	UL94 V-0	IP68	Dust Tight Waterproof	Backshell Coupling Nut	Free Hanging (In-Line)	Plastic	5	Male Pins Plug	Keyed	Thermoplastic	M16-5

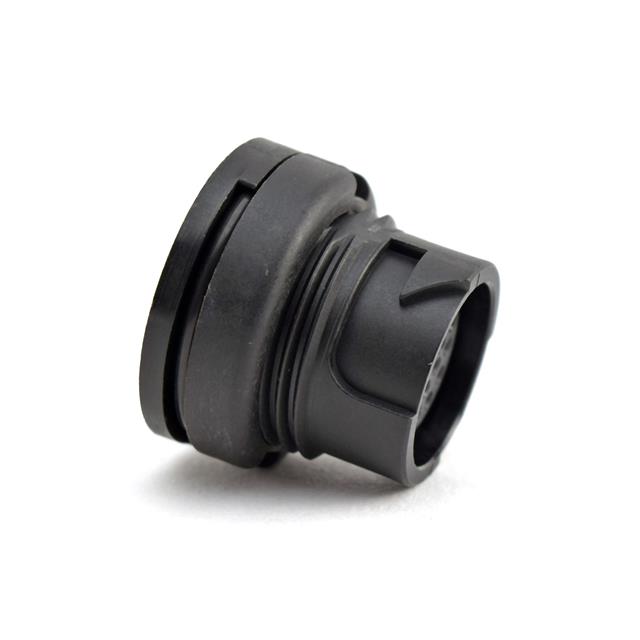

McGill Microwave Systems C09131H0031005U	Unshielded	Thermoplastic	150 VDC	Silver	10 A	0.157 in	0.335 in	100 °C	-40 °C	Thermoplastic	Black	Threaded	Solder Cup	UL94 V-0	IP68	Dust Tight Waterproof	Backshell Coupling Nut	Free Hanging (In-Line)	Plastic	3	Male Pins Plug	Keyed	Thermoplastic	M16-3
McGill Microwave Systems C09131H0121005U	Unshielded	Thermoplastic	32 V	Silver	3 A	0.157 in	0.335 in	100 °C	-40 °C	Thermoplastic	Black	Threaded	Solder Cup	UL94 V-0	IP68	Dust Tight Waterproof	Backshell Coupling Nut	Free Hanging (In-Line)	Plastic	12	Male Pins Plug	Keyed	Thermoplastic	M16-12
McGill Microwave Systems C09131H0072005U	Unshielded	Thermoplastic	100 VAC	Gold	7 A	0.157 in	0.335 in	100 °C	-40 °C	Thermoplastic	Black	Threaded	Solder Cup	UL94 V-0	IP68	Dust Tight Waterproof	Backshell Coupling Nut	Free Hanging (In-Line)	Plastic	7	Male Pins Plug	Keyed	Thermoplastic	M16-7
McGill Microwave Systems C09131H0051025U	Unshielded	Thermoplastic	100 VAC	Silver	7 A	0.335 in	0.413 in	100 °C	-40 °C	Thermoplastic	Black	Threaded	Solder Cup	UL94 V-0	IP68	Dust Tight Waterproof	Backshell Coupling Nut	Free Hanging (In-Line)	Plastic	5	Male Pins Plug	Keyed	Thermoplastic	M16-5
McGill Microwave Systems C09131H1141025U	Unshielded	Thermoplastic	32 V	Silver	3 A	0.335 in	0.413 in	100 °C	-40 °C	Thermoplastic	Black	Threaded	Solder Cup	UL94 V-0	IP68	Dust Tight Waterproof	Backshell Coupling Nut	Free Hanging (In-Line)	Plastic	14	Male Pins Plug	Keyed	Thermoplastic	M16-14
McGill Microwave Systems C09131H0081025U	Unshielded	Thermoplastic	32 V	Silver	7 A	0.335 in	0.413 in	100 °C	-40 °C	Thermoplastic	Black	Threaded	Solder Cup	UL94 V-0	IP68	Dust Tight Waterproof	Backshell Coupling Nut	Free Hanging (In-Line)	Plastic	8	Male Pins Plug	Keyed	Thermoplastic	M16-8
McGill Microwave Systems C09131H0061025U	Unshielded	Thermoplastic	100 VAC	Silver	7 A	0.335 in	0.413 in	100 °C	-40 °C	Thermoplastic	Black	Threaded	Solder Cup	UL94 V-0	IP68	Dust Tight Waterproof	Backshell Coupling Nut	Free Hanging (In-Line)	Plastic	6	Male Pins Plug	Keyed	Thermoplastic	M16-6
McGill Microwave Systems C09131H0191025U	Unshielded	Thermoplastic	32 V	Silver	3 A	0.335 in	0.413 in	100 °C	-40 °C	Thermoplastic	Black	Threaded	Solder Cup	UL94 V-0	IP68	Dust Tight Waterproof	Backshell Coupling Nut	Free Hanging (In-Line)	Plastic	19	Male Pins Plug	Keyed	Thermoplastic	M16-19
