Part	Actuator Type	Actuator Level	Termination Style	Pitch	Pitch Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Contact Finish	Height Above Board	Mounting Type	Number of Positions	Washable	Circuit	Current Rating	Contact Material	Electrical Life (Steps)	Mechanical Life (Steps)	Length	Body Material	Voltage Rating (Type)	Features	Mechanical Life (Cycles)	Electrical Life (Cycles)
TE Connectivity AMP Connectors 5161390-5	Slide (Standard)	Raised	PC Pin	0.1 in	Full	70 °C	-25 °C	50 V	Tin	0.335 in	Through Hole	5	No	SPST	0.025 A	Phosphor Bronze
TE Connectivity AMP Connectors 3-1825033-1	Rotary with Knob	Raised	PC Pin	0.1 in	Full	85 °C	-30 °C	20 VAC	Gold	0.386 in	Through Hole	16	No	Hexadecimal	0.4 VA	Copper Alloy	20000 Steps	20000 Steps	0.394 in	Polyphenylene Sulfide PPS	AC DC
TE Connectivity AMP Connectors 1-5161390-8
TE Connectivity AMP Connectors 1825007-1	Rotary for Tool	Flush Recessed	PC Pin	0.1 in	Full	85 °C	-30 °C	20 VAC	Gold	0.256 in	Through Hole	10	Yes	BCD Complement	0.4 VA	Copper Alloy	10000 Steps	10000 Steps	0.394 in	Polyphenylene Sulfide PPS	AC DC
TE Connectivity AMP Connectors GDH02SATR04	Slide (Standard)	Flush Recessed	J Lead	0.05 in	Half	85 °C	-30 °C	24 V	Gold	0.093 in	Surface Mount	2	Yes	SPST	0.025 A	Copper Alloy			0.144 in	Polyphenylene Sulfide PPS		Tape Seal	1000 Cycles	1000
TE Connectivity AMP Connectors 1-1571999-7
TE Connectivity AMP Connectors 1-1825006-7	Standard	Flush Recessed									Through Hole	10	Yes	SPST
TE Connectivity AMP Connectors 1-1825006-3
TE Connectivity AMP Connectors 1-1825007-3	Rotary for Tool	Flush Recessed	Gull Wing	0.1 in	Full	85 °C	-30 °C	20 VAC	Gold	0.291 in	Surface Mount	16	Yes	Hexadecimal Complement	0.4 VA	Copper Alloy					AC DC
TE Connectivity AMP Connectors 1-1571983-4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

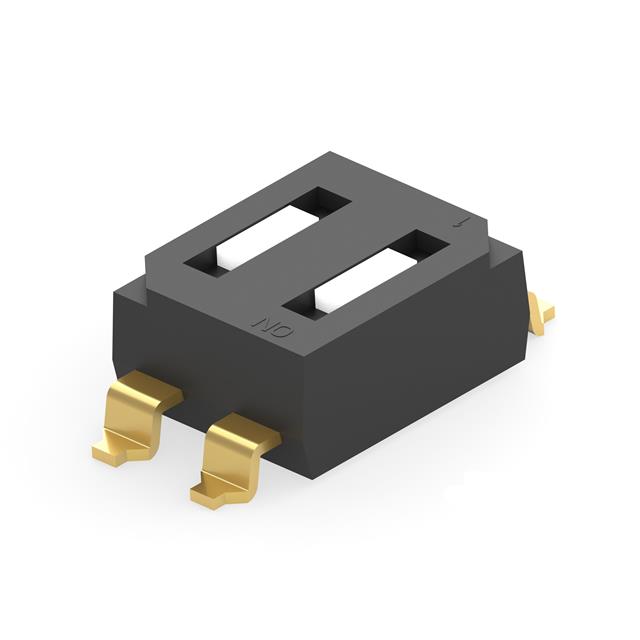

1825006-4 | Datasheet

SWITCHES_CORE_PROGRAM_CATALOG

Datasheet

ENG_CD_1825006_R.pdf
