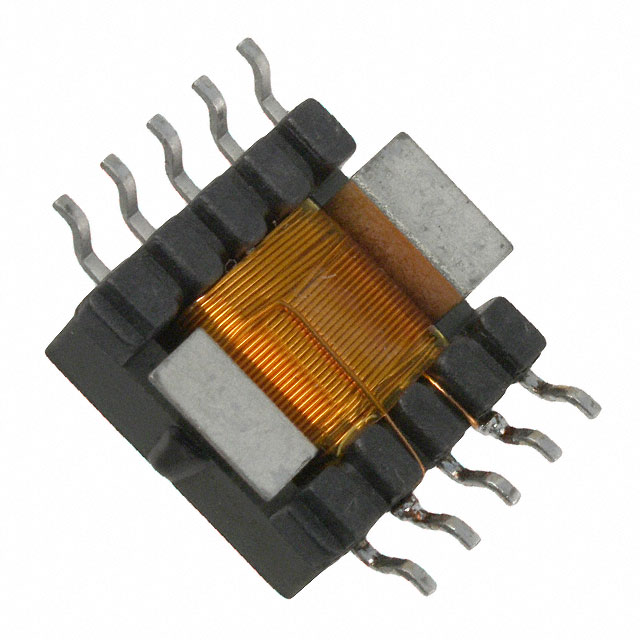

PB0027
35 A 200:1 Current Sense Transformer 50kHz ~ 500kHz 2.8mOhm Primary, 2.9Ohm Secondary 22.4 mH Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PB0027 |
|---|---|
| Current Rating | 35 A |
| DC Resistance (DCR) (Primary) | 2.8 mOhm |
| DC Resistance (DCR) (Secondary) | 2.9 Ohm |
| DC Resistance Type | Primary, Secondary |
| Frequency Range (Max) | 500 kHz |
| Frequency Range (Min) | 50 kHz |
| Height - Seated (Max) | 0.394 in |
| Inductance | 22.4 mH |
| Mounting Type | Surface Mount |
| Size / Dimension Length | 0.784 in |
| Size / Dimension Width | 0.57 in |
| Termination Style | Gull Wing |
| Turns Ratio - Primary | 200 |
| Turns Ratio - Secondary | 1 |
| Type | Invasive |
| Weight | 0.01 lb |
