S101M59S3NU83L0R
ActiveVishay Dale
CAP CER 100PF 6KV S3N RADIAL
S101M59S3NU83L0R
ActiveVishay Dale
CAP CER 100PF 6KV S3N RADIAL
Description
General part information
S101M59S3NU83L0R

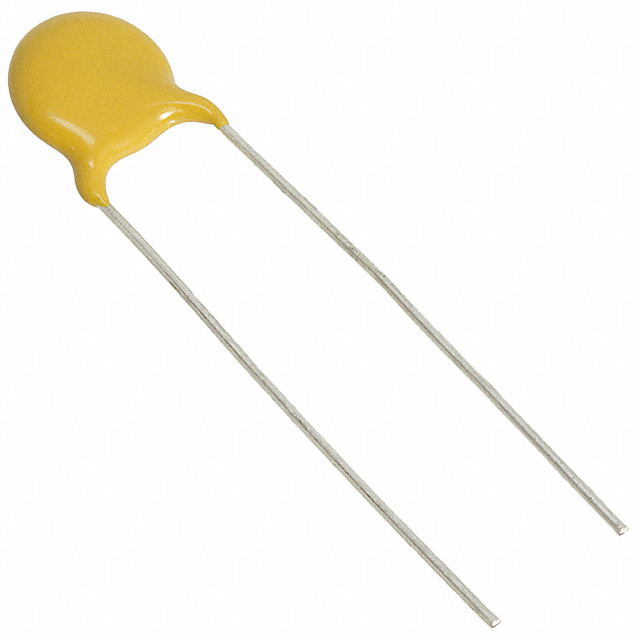

100 pF ±20% 6000V (6kV) Ceramic Capacitor S3N Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | S101M59S3NU83L0R |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 pF |
| Height - Seated (Max) | 0.709 in |
| Lead Spacing | 0.394 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.591 in |
| Temperature Coefficient | S3N |
| Tolerance | 20 % |
| Voltage - Rated | 6000 V |
