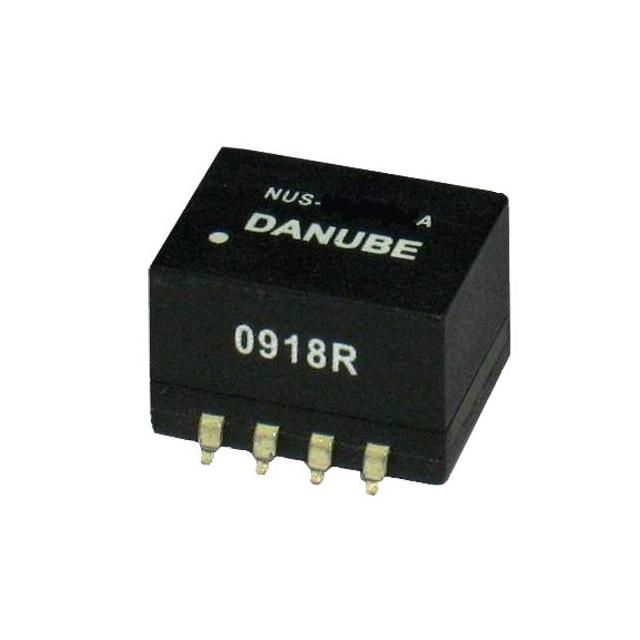

NUS-1203.3A
ActiveDiwell Electronics
DC DC CONVERTER 3.3V 1W
NUS-1203.3A
ActiveDiwell Electronics
DC DC CONVERTER 3.3V 1W
Description
General part information
NUS-1203.3A
Isolated Module DC DC Converter 1 Output 3.3V 300mA 10.8V - 13.2V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | NUS-1203.3A |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 300 mA |
| Efficiency | 74 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 71 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | 8-SMD Module |
| Power (Watts) | 0.99 W |
| Size / Dimension Height | 0.37 in |
| Size / Dimension Length | 0.54 in |
| Size / Dimension Width | 0.41 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 13.2 V |
| Voltage - Input (Min) | 10.8 V |
| Voltage - Isolation | 1000 Vrms |
| Voltage - Output 1 | 3.3 V |
