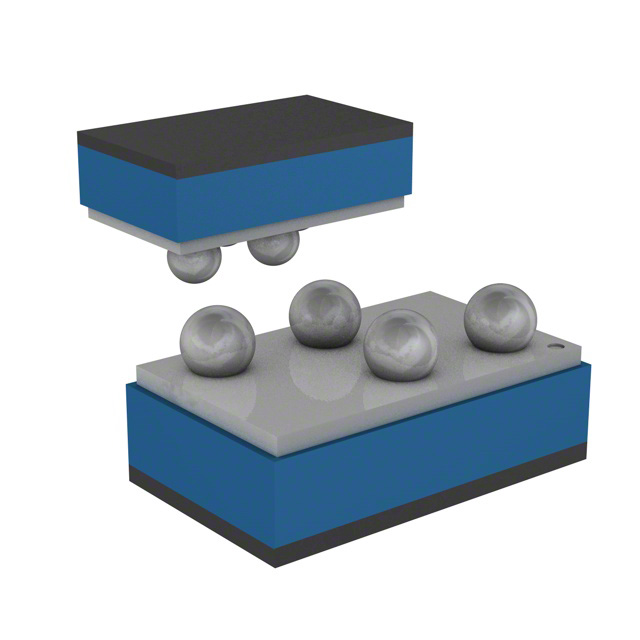

DIP1524-01D3
ActiveSTMicroelectronics
RF DIPLX 1589.655MHZ/2.55GHZ BGA
Deep-Dive with AI
Search across all available documentation for this part.
DIP1524-01D3
ActiveSTMicroelectronics
RF DIPLX 1589.655MHZ/2.55GHZ BGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DIP1524-01D3 |
|---|---|
| Frequency Bands (Low / High) [Max] [custom] | 2.7 GHz |
| Frequency Bands (Low / High) [Max] [custom] | 1605.89 MHz |
| Frequency Bands (Low / High) [Min] [custom] | 1573.42 MHz |
| Frequency Bands (Low / High) [Min] [custom] | 2.4 GHz |
| High Band Attenuation (min / max dB) [Min] | 18 dB |
| Low Band Attenuation (min / max dB) [Max] | - |
| Low Band Attenuation (min / max dB) [Min] | 20 dB |
| Mounting Type | Surface Mount |
| Package / Case | 4-UFBGA, FCBGA |
| Return Loss (Low Band / High Band) [custom] | 10 dB |
| Return Loss (Low Band / High Band) [custom] | 20 dB |
| Type | Diplexer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.40 | |||
| 25 | $ 0.36 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.40 | |||
| 25 | $ 0.36 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.20 | |||
DIP1524 Series
RF DIPLX 1589.655MHZ/2.55GHZ BGA
| Part | Package / Case | Return Loss (Low Band / High Band) [custom] | Return Loss (Low Band / High Band) [custom] | High Band Attenuation (min / max dB) [Min] | Type | Frequency Bands (Low / High) [Max] [custom] | Frequency Bands (Low / High) [Max] [custom] | Frequency Bands (Low / High) [Min] [custom] | Frequency Bands (Low / High) [Min] [custom] | Low Band Attenuation (min / max dB) [Min] | Low Band Attenuation (min / max dB) [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics DIP1524-01D3 | 4-UFBGA, FCBGA | 10 dB | 20 dB | 18 dB | Diplexer | 2.7 GHz | 1605.89 MHz | 1573.42 MHz | 2.4 GHz | 20 dB | - | Surface Mount |
Description
General part information
DIP1524 Series
RF Diplexer 1573.42MHz ~ 1605.89MHz / 2.4GHz ~ 2.7GHz 4-UFBGA, FCBGA
Documents
Technical documentation and resources
No documents available
