CBP-11

Active

Curtis Industries

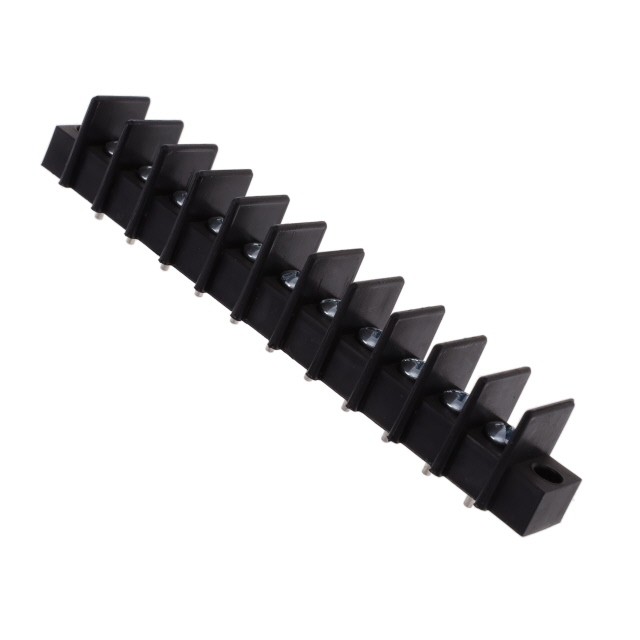

CONN BARRIER STRP 11CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBP-11

Active

Curtis Industries

CONN BARRIER STRP 11CIRC 0.375"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CBP-11	CBP Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyester Thermoplastic	Polyester Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole	Chassis, Panel, Through Hole
Number of Circuits	11	4 - 26
Number of Rows	1	1
Number of Wire Entries	11	4 - 26
Operating Temperature	140 °C	140 °C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

CBP Series

CONN BARRIER STRIP 5CIRC 0.375"

Part	Pitch [x]	Pitch [x]	Top Termination	Number of Circuits	Terminal Block Type	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries	Operating Temperature	Color	Voltage Rating	Material Flammability Rating	Number of Rows	Bottom Termination	Features	Current Rating (Amps)	Material - Insulation	Barrier Type	Terminal Screw Material
Curtis Industries CBP-5	9.53 mm	0.375 in	Screws	5	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	5	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-17	9.53 mm	0.375 in	Screws	17	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	17	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-12	9.53 mm	0.375 in	Screws	12	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	12	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-6	9.53 mm	0.375 in	Screws	6	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	6	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-13	9.53 mm	0.375 in	Screws	13	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	13	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-24	9.53 mm	0.375 in	Screws	24	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG		140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-20	9.53 mm	0.375 in	Screws	20	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	20	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-11	9.53 mm	0.375 in	Screws	11	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	11	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-21	9.53 mm	0.375 in	Screws	21	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	21	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-26	9.53 mm	0.375 in	Screws	26	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	26	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.34
		10	$ 9.10

Description

General part information

CBP Series

11 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
