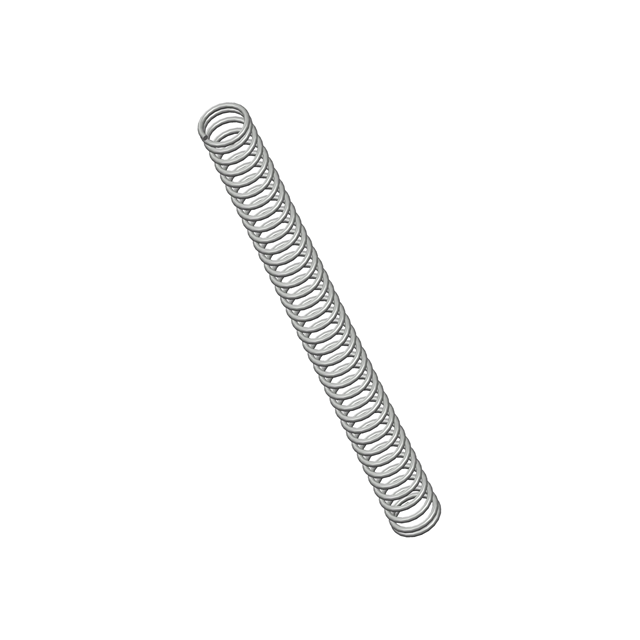

11490CS
ActiveCentury Spring Corp
COMP O= .437,L= 5.16,W= .048
11490CS
ActiveCentury Spring Corp
COMP O= .437,L= 5.16,W= .048
Description
General part information
11490CS
COMP O= .437,L= 5.16,W= .048
Technical Specifications
Parameters and characteristics for this part
| Specification | 11490CS |
|---|---|
| Diameter - Inside | 0.341 in |
| Diameter - Outside | 0.437 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 5.16 in |
| Material | Spring Steel |
| Rate (lbs/in) | 3.7 lbs/in |
| Type | Compression |
| Wire Diameter | 0.048 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
