Description
General part information
1205010242

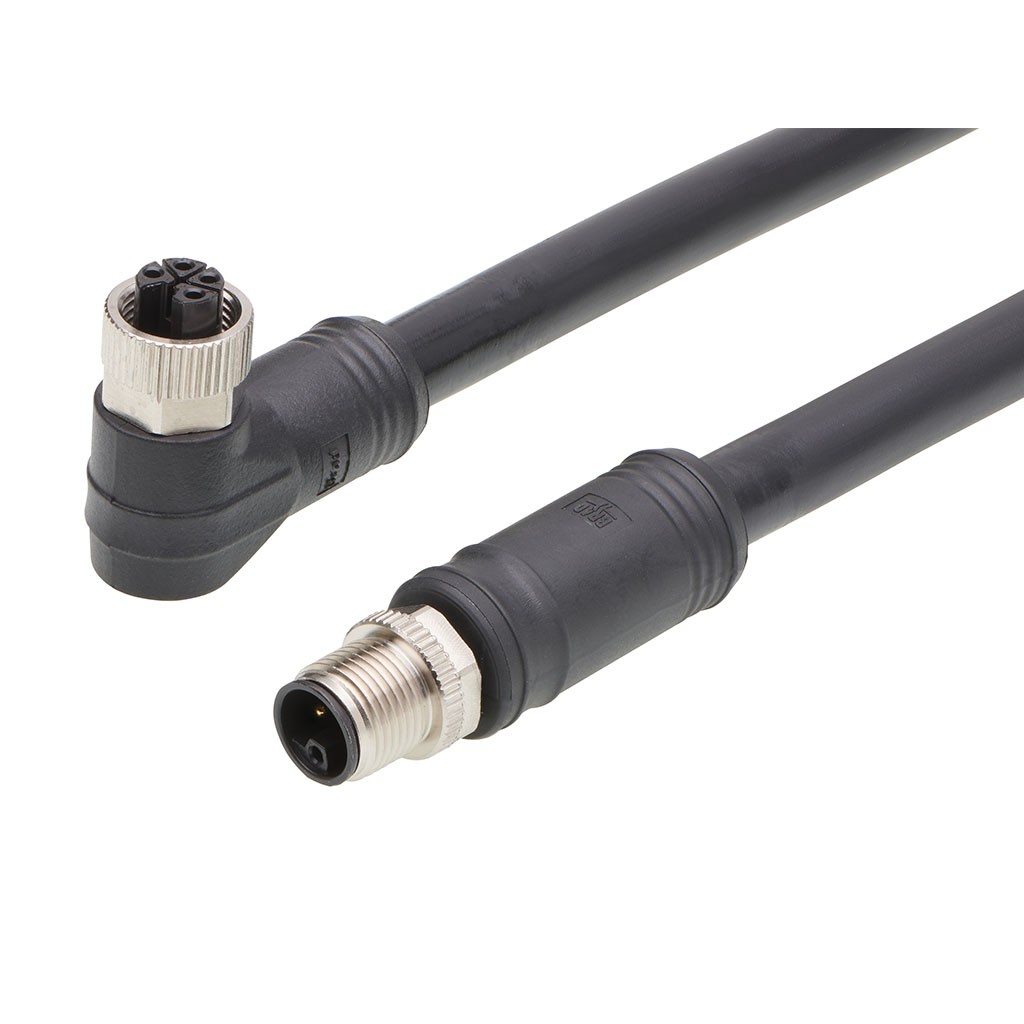

CBL 4POS RCPT TO PLUG RA 6.56'
Technical Specifications
Parameters and characteristics for this part
| Specification | 1205010242 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | L |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 4 |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Orientation | L |
| 2nd Connector Shell Size - Insert (Code) | M12 |
| 2nd Connector Type | Right Angle, Plug |
| Assembly Configuration | Standard |
| Cable Material | Thermoplastic Polyurethane (TPU) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 6.56 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
