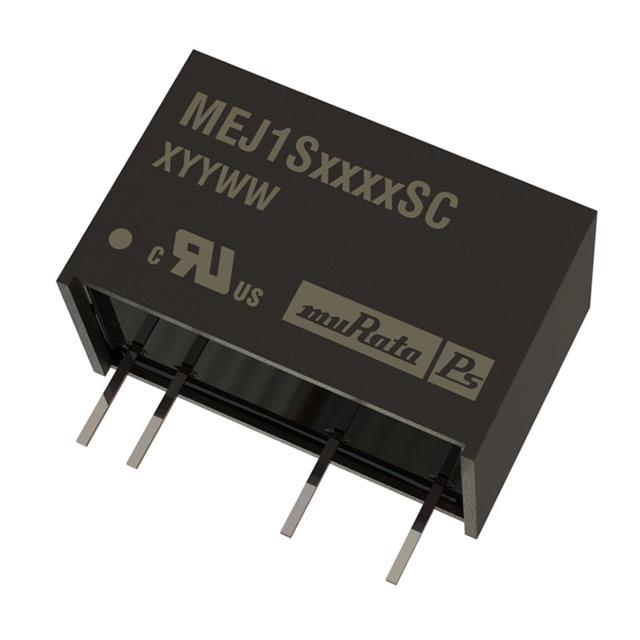

MEJ1S2405SC
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, SIP, 1:1, 1 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
MEJ1S2405SC
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, SIP, 1:1, 1 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MEJ1S2405SC | MEJ1S24 Series |
|---|---|---|
| Applications | ITE (Commercial), Medical | ITE (Commercial), Medical |
| Current - Output (Max) [Max] | 200 mA | 66 - 200 mA |
| Efficiency | 75 % | 75 - 78 % |
| Features | SCP | SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 7-SIP Module, 5 Leads | 7-SIP Module, 5 Leads |
| Size / Dimension [x] | 19.7 mm | 19.7 mm |
| Size / Dimension [x] | 0.77 in | 0.77 in |
| Size / Dimension [y] | 0.39 " | 0.39 " |
| Size / Dimension [y] | 10 mm | 10 mm |
| Size / Dimension [z] | 12.7 mm | 12.7 mm |
| Size / Dimension [z] | 0.5 in | 0.5 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V | 21.6 V |
| Voltage - Isolation | 5.2 kV | 5.2 kV |
| Voltage - Output 1 | 5 V | 5 - 15 V |
MEJ1S24 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, SIP, 1:1, 1 W, 1 OUTPUT, 5 V
| Part | Voltage - Input (Max) [Max] | Package / Case | Type | Mounting Type | Features | Voltage - Isolation | Voltage - Output 1 | Number of Outputs | Efficiency | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Applications | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. MEJ1S2405SC | 26.4 V | 7-SIP Module, 5 Leads | Isolated Module | Through Hole | SCP | 5.2 kV | 5 V | 1 | 75 % | 21.6 V | 200 mA | 0.39 " | 19.7 mm | 12.7 mm | 0.5 in | 0.77 in | 10 mm | ITE (Commercial), Medical | 85 °C | -40 °C |
Murata Power Solutions Inc. MEJ1S2412SC | 26.4 V | 7-SIP Module, 5 Leads | Isolated Module | Through Hole | SCP | 5.2 kV | 12 V | 1 | 78 % | 21.6 V | 83 mA | 0.39 " | 19.7 mm | 12.7 mm | 0.5 in | 0.77 in | 10 mm | ITE (Commercial), Medical | 85 °C | -40 °C |
Murata Power Solutions Inc. MEJ1S2415SC | 26.4 V | 7-SIP Module, 5 Leads | Isolated Module | Through Hole | SCP | 5.2 kV | 15 V | 1 | 78 % | 21.6 V | 66 mA | 0.39 " | 19.7 mm | 12.7 mm | 0.5 in | 0.77 in | 10 mm | ITE (Commercial), Medical | 85 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MEJ1S24 Series
Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V - 26.4V Input
