2386606-2
ActiveTE Connectivity AMP Connectors

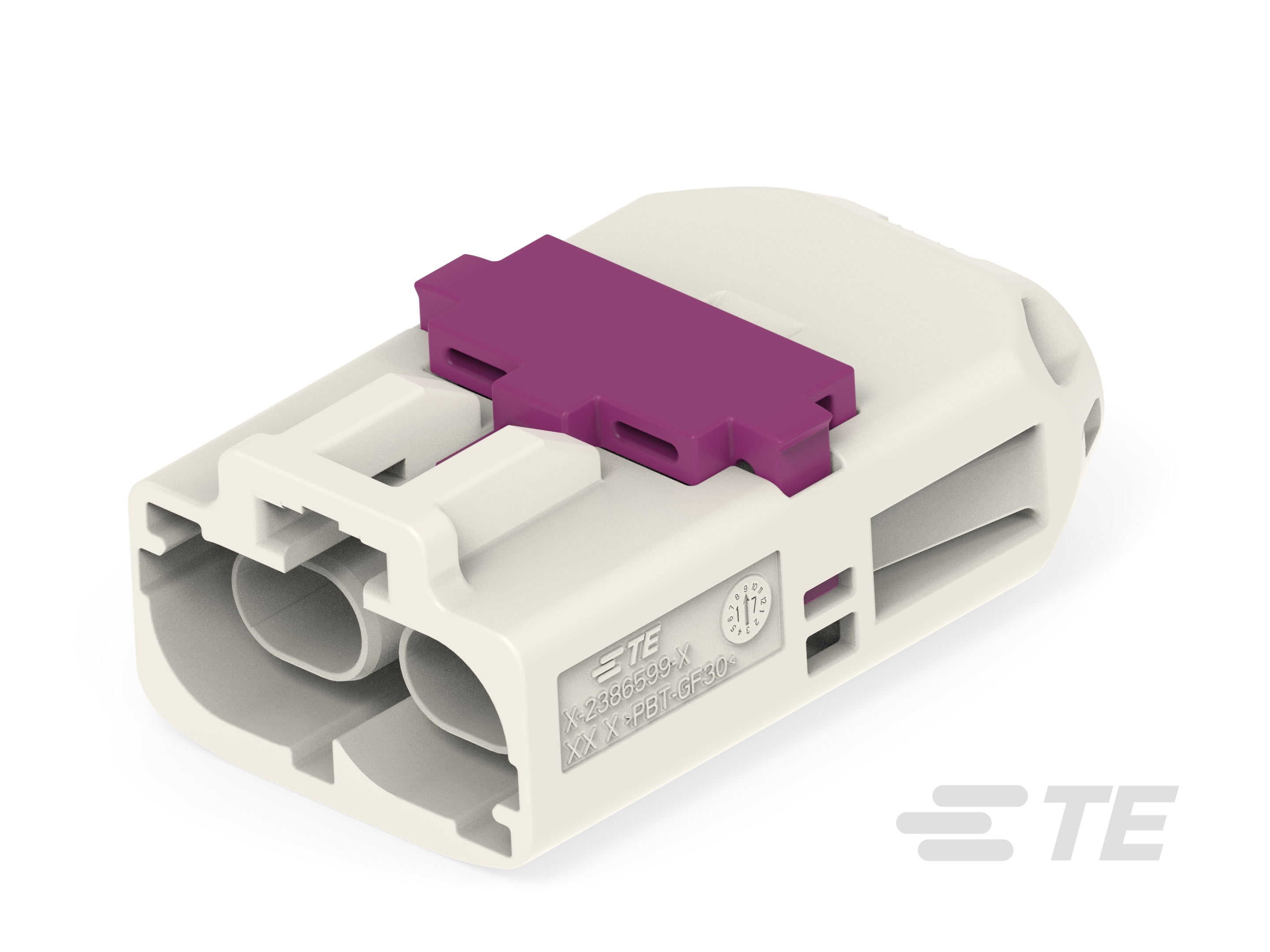

2P,PIN HSG ASSY,180DEG,COD B,GEMNET
2386606-2
ActiveTE Connectivity AMP Connectors
2P,PIN HSG ASSY,180DEG,COD B,GEMNET
Description
General part information
2386606-2
Cable-to-Cable, 180° Cable Exit, 2 Position, B Code, Housing for Female Terminals, 8 mm [.315 in] Centerline, Crimp, Data Connectivity Housings
Technical Specifications
Parameters and characteristics for this part
| Specification | 2386606-2 |
|---|---|
| Color | White |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.315 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
