2-1318117-3

Active

TE Connectivity AMP Connectors

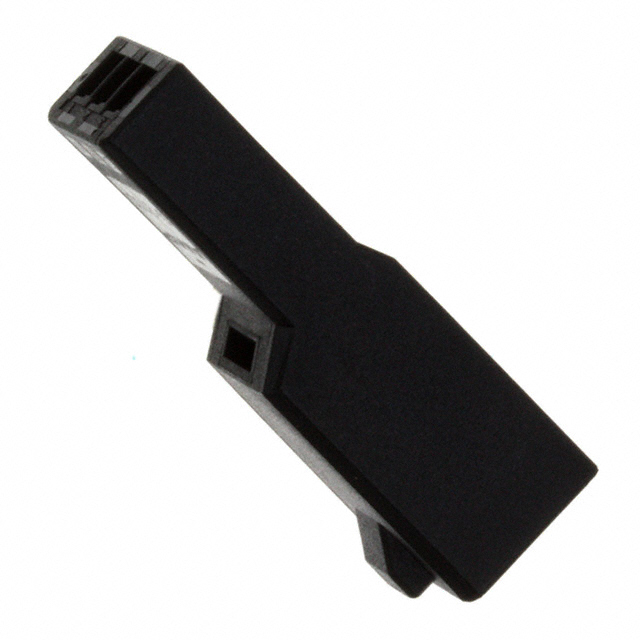

CONN PLUG HSG 3POS 2.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 3POS 2.50MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1318117-3	1318117 Series

Color	Black	Black
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Male Pin	Male Pin
Fastening Type	Locking Ramp	Locking Ramp
Features	Polarizing Key	Polarizing Key
Insulation Material	-	Thermoplastic, Glass Filled, Polyester
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.098 in	0.098 in
Pitch [x]	2.5 mm	2.5 mm

CONN PLUG HSG 3POS 2.50MM

Part	Note	Contact Type	Pitch [x]	Pitch [x]	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Termination	Number of Rows	Connector Type	Features	Color	Mounting Type
TE Connectivity AMP Connectors 1-1318117-3	Contacts Not Included	Male Pin	0.098 in	2.5 mm	Glass Filled, Polyester, Thermoplastic	105 ░C	-55 °C	Locking Ramp	Crimp	1	Plug	Polarizing Key	Black	Free Hanging (In-Line)
TE Connectivity AMP Connectors 2-1318117-3	Contacts Not Included	Male Pin	0.098 in	2.5 mm		105 ░C	-55 °C	Locking Ramp	Crimp	1	Plug	Polarizing Key	Black	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Plug Black 0.098" (2.50mm)
