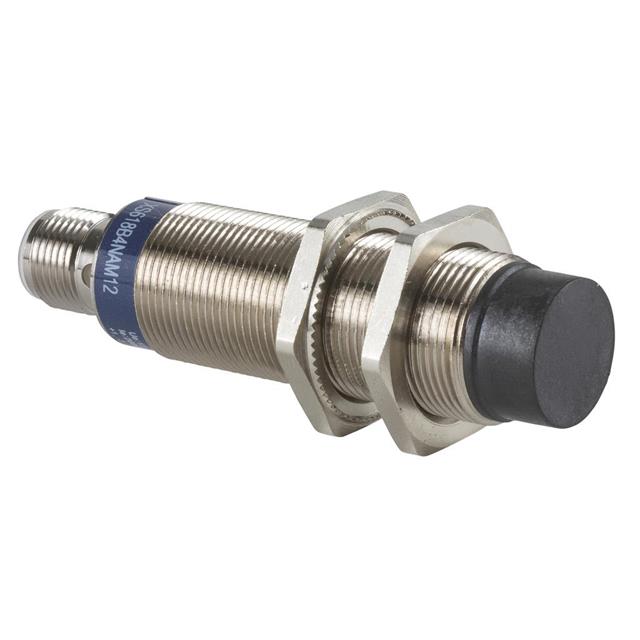

XS518BLPAM12
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M18, 8 MM, PNP, 12 V TO 24 V, CONNECTOR
XS518BLPAM12
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M18, 8 MM, PNP, 12 V TO 24 V, CONNECTOR
Description
General part information
XS518BLPAM12
Inductive Proximity Sensor 0.197" (5mm) IP67, IP69K Cylinder, Threaded - M18
Technical Specifications
Parameters and characteristics for this part
| Specification | XS518BLPAM12 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP69K, IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance | 0.197 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 48 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
