KOVTL25MDNCCCB
ActiveKYOCERA AVX

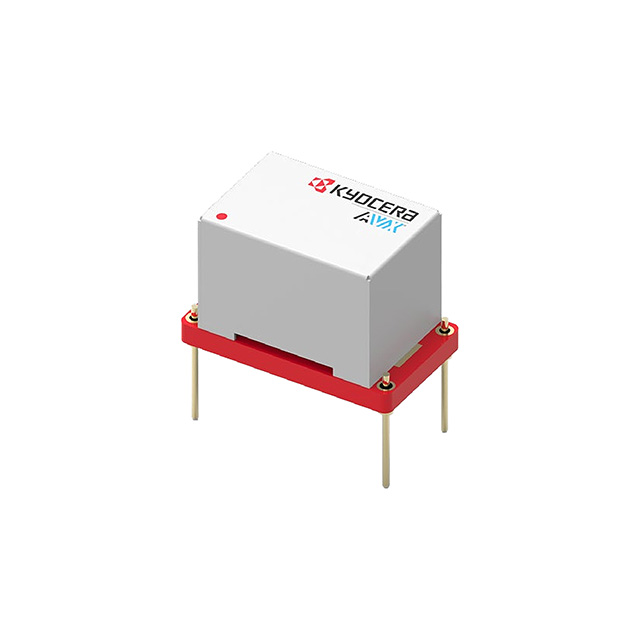

25 MHZ OCXO TH 14 PIN DIP (L PAC
KOVTL25MDNCCCB
ActiveKYOCERA AVX
25 MHZ OCXO TH 14 PIN DIP (L PAC
Description
General part information
KOVTL25MDNCCCB
25 MHz OCXO CMOS, TTL Oscillator 3.3V 5-DIP Module
Technical Specifications
Parameters and characteristics for this part
| Specification | KOVTL25MDNCCCB |
|---|---|
| Base Resonator | Crystal |
| Frequency | 25 MHz |
| Frequency Stability | 10 ppb |
| Height - Seated (Max) | 12.7 mm |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS, TTL |
| Package / Case | 5-DIP Module |
| Size / Dimension Length | 0.81 in |
| Size / Dimension Width | 0.81 in |
| Type | OCXO |
| Voltage - Supply | 3.3 V |
