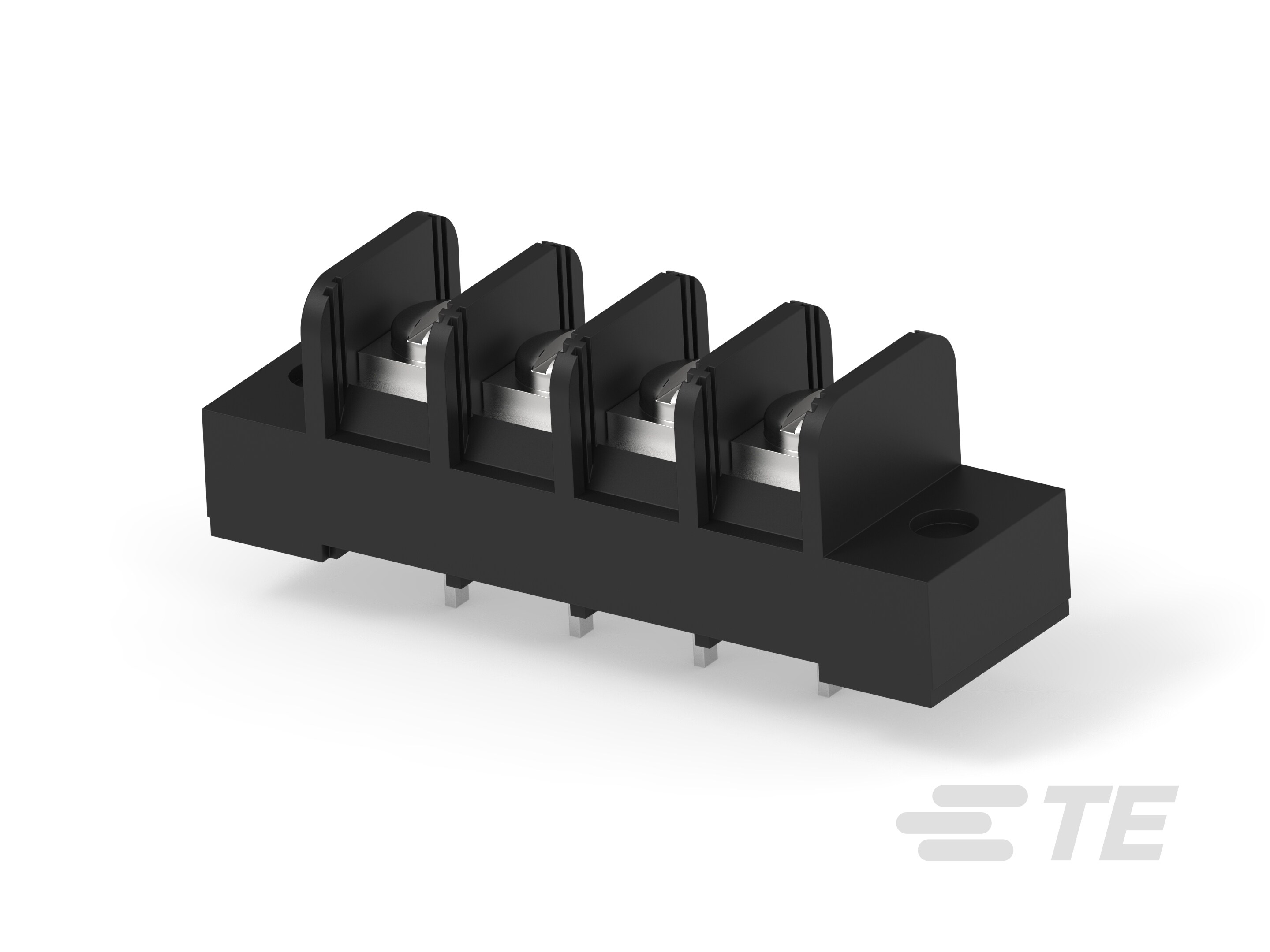

Specification	JC6-P208-04

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Color	Black
Current Rating	20 A
Features	Flange
Material - Insulation	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	4
Number of Rows	1
Number of Wire Entries	4
Operating Temperature	105 °C
Pitch	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Clear Chromate, Zinc
Terminal Screw Material	Steel
Top Termination	Screws with Captive Plate
Voltage Rating	300 VAC/DC
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	12 AWG

BUCHANAN JC6 Series Series

...

Part	Material Flammability Rating	Material - Insulation	Operating Temperature	Mounting Type	Terminal Screw Finish	Terminal Screw Material	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Bottom Termination	Pitch	Terminal Block Type	Number of Rows	Barrier Type	Current Rating	Features	Number of Circuits	Voltage Rating	Top Termination	Color	Number of Wire Entries
TE Connectivity AMP Connectors 796985-1	UL94 V-0	Thermoplastic	105 °C	Chassis Panel	Clear Chromate Zinc	Steel	12 AWG	22 AWG	Solder Turret	0.375 in	Barrier Block	1	2 Wall (Dual)	20 A	Flange	3	300 VAC/DC	Screws with Captive Plate	Black	3
TE Connectivity AMP Connectors 4-796985-2	UL94 V-0	Thermoplastic	105 °C	Through Hole	Clear Chromate Zinc	Steel	12 AWG	22 AWG	PC Pin	0.375 in	Barrier Block	1	2 Wall (Dual)	20 A		7	300 VAC/DC	Screws with Captive Plate	Black	7
TE Connectivity AMP Connectors 796985-8	UL94 V-0	Thermoplastic	105 °C	Through Hole	Clear Chromate Zinc	Steel	12 AWG	22 AWG	PC Pin	0.375 in	Barrier Block	1	2 Wall (Dual)	20 A		4	300 VAC/DC	Screws (Not Included)	Black	4
TE Connectivity AMP Connectors 2-796985-9	UL94 V-0	Thermoplastic	105 °C	Through Hole	Clear Chromate Zinc	Steel	12 AWG	22 AWG	Wire Wrap	0.375 in	Barrier Block	1	2 Wall (Dual)	20 A		12	300 VAC/DC	Screws with Captive Plate	Black	12
TE Connectivity AMP Connectors 7-796985-0	UL94 V-0	Thermoplastic	105 °C	Chassis Panel Through Hole	Clear Chromate Zinc	Steel	12 AWG	22 AWG	PC Pin	0.375 in	Barrier Block	1	2 Wall (Dual)	20 A	Flange	14	300 VAC/DC	Screws	Black	14
TE Connectivity AMP Connectors 7-796985-4	UL94 V-0	Thermoplastic	105 °C	Chassis Panel Through Hole	Clear Chromate Zinc	Steel	12 AWG	22 AWG	PC Pin	0.375 in	Barrier Block	1	2 Wall (Dual)	20 A	Flange	18	300 VAC/DC	Screws	Black	18
TE Connectivity AMP Connectors 796985-2	UL94 V-0	Thermoplastic	105 °C	Chassis Panel	Clear Chromate Zinc	Steel	12 AWG	22 AWG	Solder Turret	0.375 in	Barrier Block	1	2 Wall (Dual)	20 A	Flange	6	300 VAC/DC	Screws	Black	6
TE Connectivity AMP Connectors 7-796985-5	UL94 V-0	Thermoplastic	105 °C	Chassis Panel Through Hole	Clear Chromate Zinc	Steel	12 AWG	22 AWG	PC Pin	0.375 in	Barrier Block	1	2 Wall (Dual)	20 A	Flange	19	300 VAC/DC	Screws	Black	19
