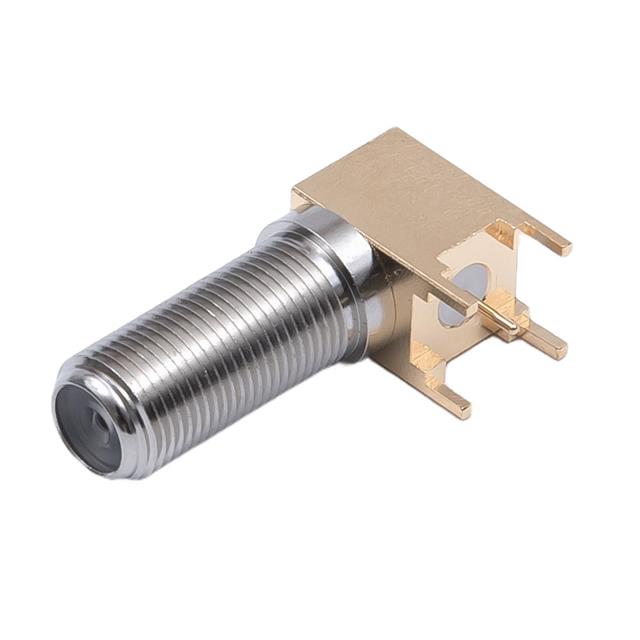

F-224LR-CS
F Type Connector Receptacle, Female Socket 75 Ohms Through Hole, Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | F-224LR-CS |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze, Brass |
| Center Contact Plating | Gold |
| Connector Style | F Type |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Frequency - Max | 3 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 150 VDC |
