MAL213228689E3
ActiveVishay Dale
CAP ALUM 68UF 63V AXIAL TH
MAL213228689E3
ActiveVishay Dale
CAP ALUM 68UF 63V AXIAL TH
Description
General part information
MAL213228689E3

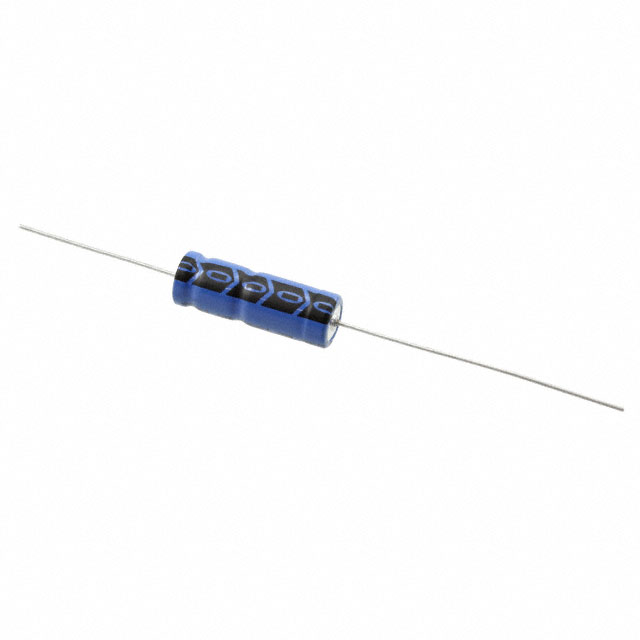

68 µF 63 V Aluminum Electrolytic Capacitors Axial, Can 1.6Ohm @ 100Hz 15000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL213228689E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 68 µF |
| ESR (Equivalent Series Resistance) | 1.6 Ohm |
| Impedance | 600 mOhms |
| Lifetime | 15000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 210 mA |
| Size / Dimension Diameter | 0.394 in |
| Size / Dimension Length | 1.181 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 63 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
