NTCLE413E2472H400A
ActiveVishay Dale
NTC EPOXY 3MM, PVC INSULATED AWG
NTCLE413E2472H400A
ActiveVishay Dale
NTC EPOXY 3MM, PVC INSULATED AWG
Description
General part information
NTCLE413E2472H400A

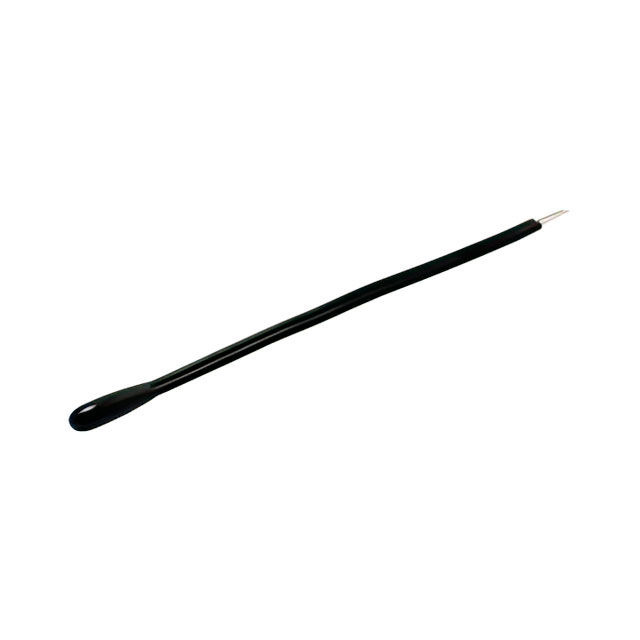

NTC Thermistor 4.7k Bead, Epoxy
Technical Specifications
Parameters and characteristics for this part
| Specification | NTCLE413E2472H400A |
|---|---|
| B Value (25/85) | 3984 K |
| B Value Tolerance | 0.5 % |
| Length - Lead Wire | 1.58 in |
| Mounting Type | Free Hanging |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Bead, Epoxy |
| Power - Max | 100 mW |
| Resistance (Ohms) | 4.7 kOhm |
| Resistance Tolerance (%) | 3 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
