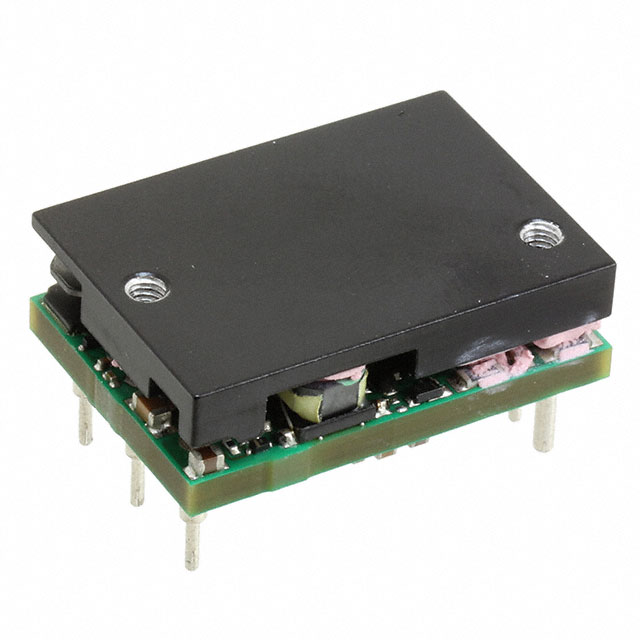

UIS48T14050-NDABG
ObsoleteBel Fuse Inc.
DC DC CONVERTER 5V 70W
UIS48T14050-NDABG
ObsoleteBel Fuse Inc.
DC DC CONVERTER 5V 70W
Description
General part information
UIS48T14050-NDABG
Isolated Module DC DC Converter 1 Output 5V 14A 18V - 75V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | UIS48T14050-NDABG |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Enable, Active Low |
| Current - Output (Max) | 14 A |
| Efficiency | 90 % |
| Features | UVLO, OCP, Remote On/Off, OVP, OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 8-DIP Module, 1/16 Brick |
| Power (Watts) | 70 W |
| Size / Dimension Height | 0.52 in |
| Size / Dimension Length | 1.3 in |
| Size / Dimension Width | 0.6 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 75 V |
| Voltage - Input (Min) | 18 V |
| Voltage - Isolation | 2.25 kV |
| Voltage - Output 1 | 5 V |
