60 1.5"X36YD
Obsolete3M Electronic Specialty
TAPE PTFE TAPE TRAN 1 1/2"X36YDS
60 1.5"X36YD
Obsolete3M Electronic Specialty
TAPE PTFE TAPE TRAN 1 1/2"X36YDS
Description
General part information

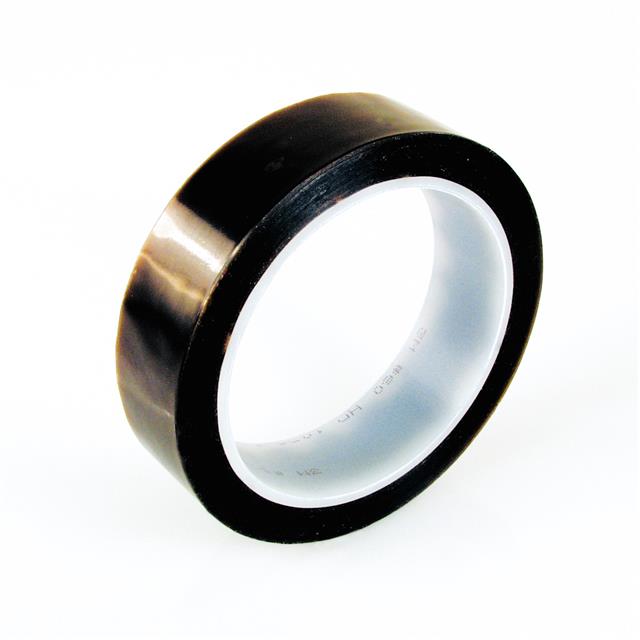

60 1.5"X36YD
PTFE Tape Tape Silicone Thermosetting Adhesive Transparent 1.50" (38.10mm) 1 1/2" X 108' (32.9m) 36 yds
Technical Specifications
Parameters and characteristics for this part
| Specification | 60 1.5"X36YD |
|---|---|
| Adhesive | Silicone Thermosetting |
| Backing | PTFE Film |
| Carrier | PTFE Film |
| Color | Transparent |
| Length (ft) | 108 ft |
| Length (yd) | 36 yd |
| Shelf Life | 60 Months |
| Shelf Life Start | Date of Manufacture |
| Tape Type | PTFE Tape |
| Temperature Range (Max) | 356 °F |
| Thickness | 0.004 in |
| Thickness - Adhesive | 0.002 in |
| Thickness - Backing, Carrier | 0.002 in |
| Usage | Insulating, High Temperature |
| Width | 1.5 in |
