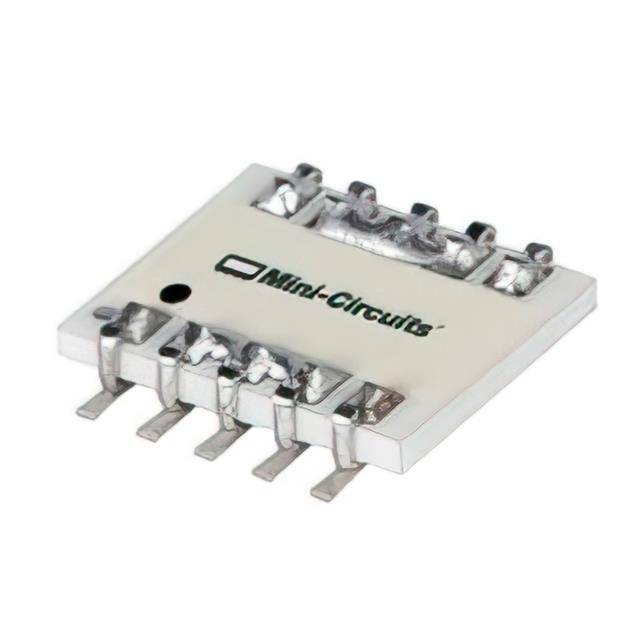

BDCA-10-25+
ActiveMini-Circuits
SMT BI-DIR COUP, 800 - 2500 MHZ
BDCA-10-25+
ActiveMini-Circuits
SMT BI-DIR COUP, 800 - 2500 MHZ
Description
General part information
BDCA-10-25+
RF Directional Coupler Cellular, PCN, PCS 800MHz ~ 2.5GHz 10.1 ± 2dB 50W 10-SMD, Flat Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | BDCA-10-25+ |
|---|---|
| Applications | Cellular, PCN, PCS |
| Coupler Type | Standard |
| Coupling Factor | 10.1 dB |
| Coupling Factor Tolerance | 2 dB |
| Frequency (Max) | 2.5 GHz |
| Frequency (Min) | 800 MHz |
| Package / Case | Flat Leads, 10-SMD |
| Power - Max | 50 VA |
