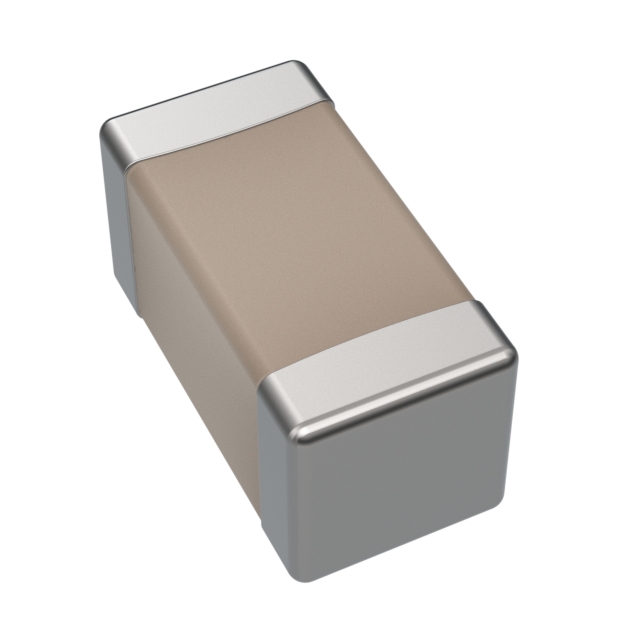

WLBD1005HCU121TH
UnknownWalsin Technology Corporation
FERRITE BEAD 120 OHM 0402 1LN
WLBD1005HCU121TH
UnknownWalsin Technology Corporation
FERRITE BEAD 120 OHM 0402 1LN
Description
General part information
WLBD1005HCU121TH
120 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0402 (1005 Metric) 1.5A 150mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | WLBD1005HCU121TH |
|---|---|
| Current Rating (Max) | 1.5 A |
| DC Resistance (DCR) (Max) | 150 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.026 in |
| Impedance | 120 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension Length | 0.047 in |
| Size / Dimension Width | 0.025 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
