EG41010001
ActiveTE Connectivity AMP Connectors
ES-CAP-NO.1-C1-0-50MM
EG41010001
ActiveTE Connectivity AMP Connectors
ES-CAP-NO.1-C1-0-50MM
Description
General part information

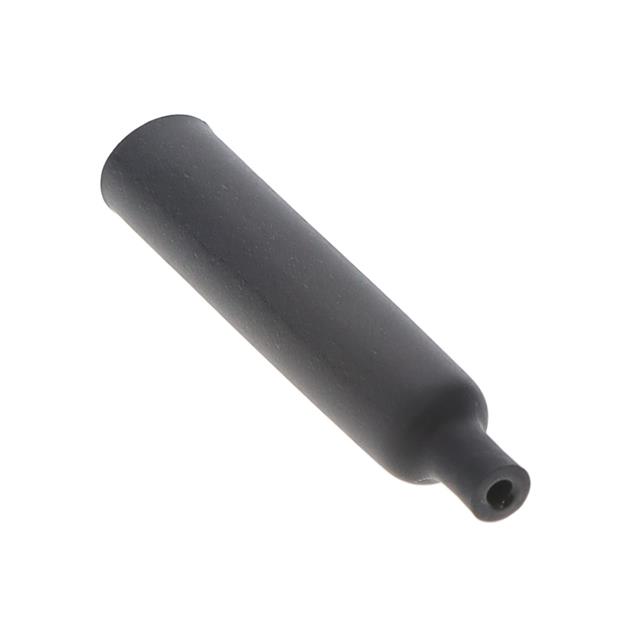

RAYCHEM ES-CAP Series
Dual Wall Heat Shrink Cap, Adhesive Precoat, -40 – 105 °C [-40 – 221 °F], RAYCHEM ES-CAP
Technical Specifications
Parameters and characteristics for this part
| Specification | EG41010001 |
|---|---|
| Color | Black |
| Large Diameter Recovered | 0.051 in |
| Large Diameter Supplied | 0.224 in |
| Large Recovered Length | 1.97 in |
| Material | Polyolefin (PO), Semi-Rigid |
| Small Diameter Recovered | 0.22 in |
| Type | Cap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
