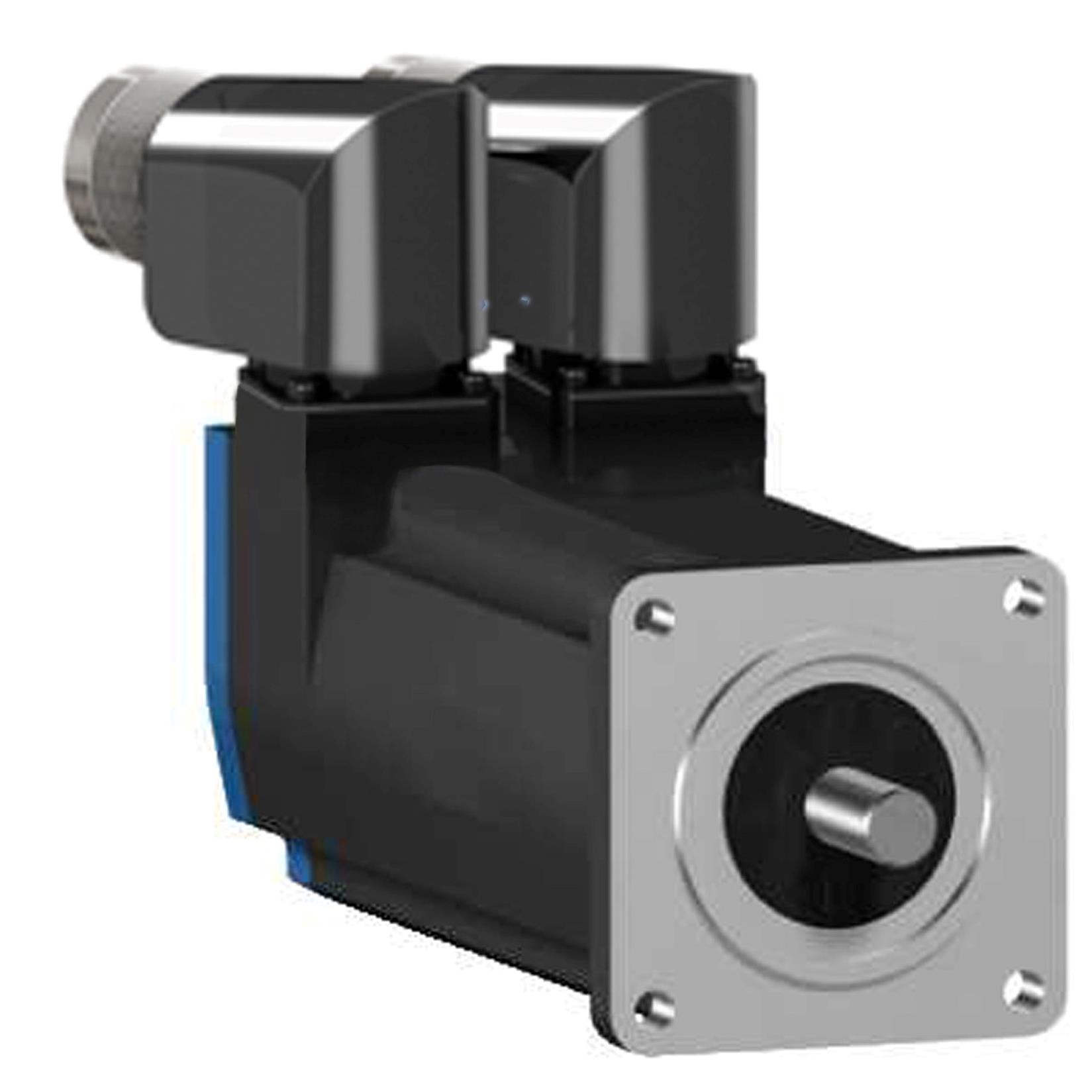

BSH0553P32A2A
ActiveSCHNEIDER ELECTRIC
MOTOR 55 IP65 KEYED ABS NOBRK AN
BSH0553P32A2A
ActiveSCHNEIDER ELECTRIC
MOTOR 55 IP65 KEYED ABS NOBRK AN
Description
General part information
BSH0553P32A2A
AC Motor Servomotor 9000 RPM 670W 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BSH0553P32A2A |
|---|---|
| Diameter - Shaft | 0.354 in |
| Features | Key |
| Function | Servomotor |
| Length - Shaft and Bearing | 0.79 in |
| Mounting Hole Spacing | 1.57 in |
| Power - Rated | 670 W |
| RPM | 9000 RPM |
| Size / Dimension Length | 2.165 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 2.165 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 1100 mNm |
| Torque - Rated (oz-in) | 155.8 oz-in |
| Type | AC Motor |
| Voltage - Rated | 480 VAC |
