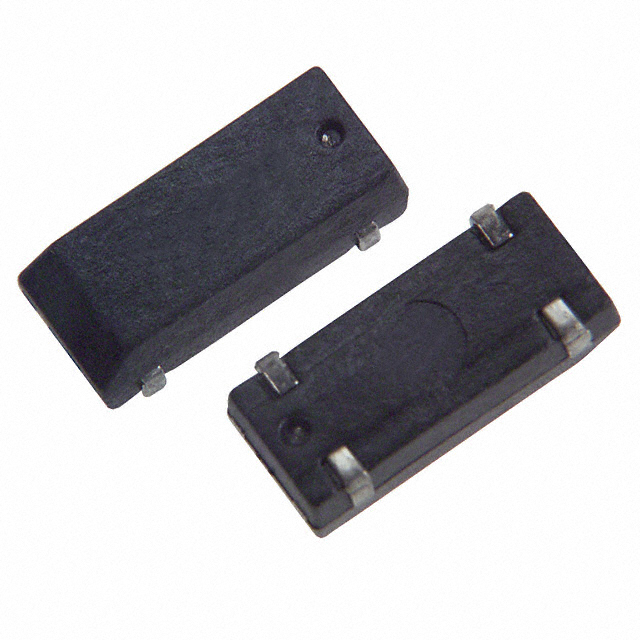

CM250S-76.800KAZF-UT
ObsoleteCitizen Finedevice Co Ltd
CRYSTAL 76.8000KHZ 12.5PF SMD
CM250S-76.800KAZF-UT
ObsoleteCitizen Finedevice Co Ltd
CRYSTAL 76.8000KHZ 12.5PF SMD
Description
General part information
CM250S-76.800KAZF-UT
76.8 kHz ±30ppm Crystal 12.5pF 50 kOhms 4-SOJ, 5.50mm pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | CM250S-76.800KAZF-UT |
|---|---|
| ESR (Equivalent Series Resistance) | 50 kOhm |
| Frequency | 76.8 kHz |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.098 in |
| Load Capacitance | 12.5 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 5.50mm pitch, 4-SOJ |
| Package Pitch | 5.5 mm |
| Size / Dimension Length | 0.311 in |
| Size / Dimension Width | 0.146 in |
| Type | kHz Crystal (Tuning Fork) |
