PK700-320-320-1.0

Active

Shiu Li Technology Co., Ltd.

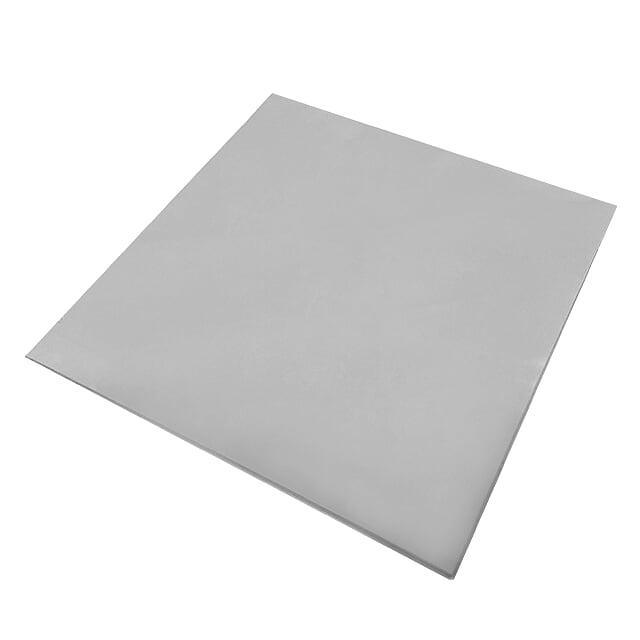

THERM PAD 320X320MM GRAY

Deep-Dive with AI

Search across all available documentation for this part.

PK700-320-320-1.0

Active

Shiu Li Technology Co., Ltd.

THERM PAD 320X320MM GRAY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 171.27
		10	$ 152.69
		25	$ 145.86
		50	$ 140.89

Description

General part information

PK700 Series

Thermal Pad Gray 320.00mm x 320.00mm Square

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PK700-320-320-1.0	PK700 Series

Adhesive	-	Tacky - Both Sides
Color	Gray	Gray
Material	Silicone	Silicone
Outline [x]	320 mm	160 - 320 mm
Outline [y]	320 mm	160 - 320 mm
Shape	Square	Square
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Shipment	Date of Shipment
Storage/Refrigeration Temperature	Room Temperature	Room Temperature
Thermal Conductivity	7 W/m-K	7 W/m-K
Thickness	0.0394 in	0.02 - 0.197 in
Thickness	1 mm	0.508 - 5 mm
Thickness	-	4.5 mm
Thickness	-	0.177 in
Type	Gap Filler Pad, Sheet	Gap Filler Pad, Sheet
Usage	Multi	Multi

PK700 Series

THERM PAD 320X320MM GRAY

Part	Thickness	Thickness	Thermal Conductivity	Type	Shelf Life Start	Shelf Life	Shape	Storage/Refrigeration Temperature	Adhesive	Color	Outline [x]	Outline [y]
Shiu Li Technology Co., Ltd. PK700-320-320-2.0	0.079 in	2 mm	7 W/m-K	Gap Filler Pad, Sheet	Date of Shipment	120 Months	Square	Room Temperature	Tacky - Both Sides	Gray	320 mm	320 mm
Shiu Li Technology Co., Ltd. PK700-160-160-0.5	0.02 in	0.508 mm	7 W/m-K	Gap Filler Pad, Sheet	Date of Shipment	120 Months	Square	Room Temperature	Tacky - Both Sides	Gray	160 mm	160 mm
Shiu Li Technology Co., Ltd. PK700-160-160-5.0	0.197 "	5 mm	7 W/m-K	Gap Filler Pad, Sheet	Date of Shipment	120 Months	Square	Room Temperature	Tacky - Both Sides	Gray	160 mm	160 mm
Shiu Li Technology Co., Ltd. PK700-160-160-2.0	0.079 in	2 mm	7 W/m-K	Gap Filler Pad, Sheet	Date of Shipment	120 Months	Square	Room Temperature	Tacky - Both Sides	Gray	160 mm	160 mm
Shiu Li Technology Co., Ltd. PK700-320-320-1.5	0.0591 "	1.5 mm	7 W/m-K	Gap Filler Pad, Sheet	Date of Shipment	120 Months	Square	Room Temperature	Tacky - Both Sides	Gray	320 mm	320 mm
Shiu Li Technology Co., Ltd. PK700-320-320-0.5	0.02 in	0.508 mm	7 W/m-K	Gap Filler Pad, Sheet	Date of Shipment	120 Months	Square	Room Temperature	Tacky - Both Sides	Gray	320 mm	320 mm
Shiu Li Technology Co., Ltd. PK700-160-160-3.5	0.138 in	3.5 mm	7 W/m-K	Gap Filler Pad, Sheet	Date of Shipment	120 Months	Square	Room Temperature	Tacky - Both Sides	Gray	160 mm	160 mm
Shiu Li Technology Co., Ltd. PK700-320-320-3.5	0.138 in	3.5 mm	7 W/m-K	Gap Filler Pad, Sheet	Date of Shipment	120 Months	Square	Room Temperature	Tacky - Both Sides	Gray	320 mm	320 mm
Shiu Li Technology Co., Ltd. PK700-320-320-4.0	0.157 in	4 mm	7 W/m-K	Gap Filler Pad, Sheet	Date of Shipment	120 Months	Square	Room Temperature	Tacky - Both Sides	Gray	320 mm	320 mm
Shiu Li Technology Co., Ltd. PK700-160-160-4.0	0.157 in	4 mm	7 W/m-K	Gap Filler Pad, Sheet	Date of Shipment	120 Months	Square	Room Temperature	Tacky - Both Sides	Gray	160 mm	160 mm
