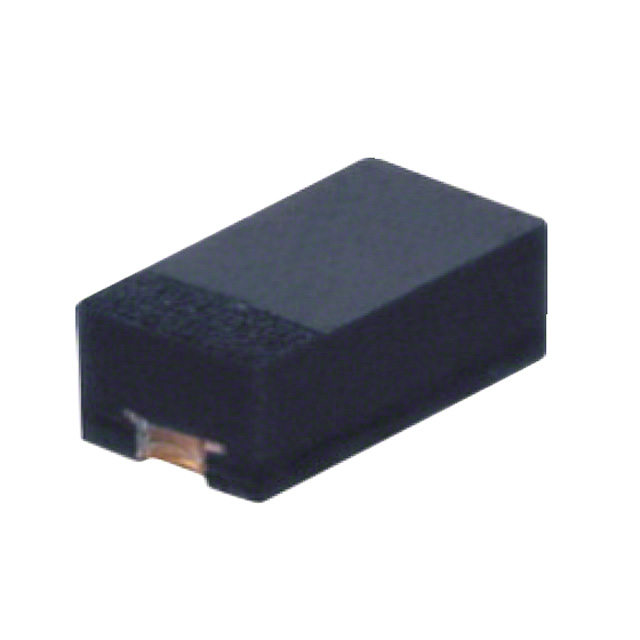

ACGRBT301-HF

Active

Comchip Technology

DIODE GEN PURP 200V 3A 2114

Search across all available documentation for this part.

Active

Comchip Technology

DIODE GEN PURP 200V 3A 2114

Technical Specifications

Parameters and characteristics for this part

Specification	ACGRBT301-HF

Capacitance @ Vr, F	23 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	5 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-65 C
Package / Case	2-SMD, No Lead
Qualification	AEC-Q101
Speed	200 mA, 500 ns
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1 V

DIODE GEN PURP 200V 3A 2114

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Voltage - Forward (Vf) (Max) @ If	Qualification	Grade	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Capacitance @ Vr, F	Speed	Package / Case	Mounting Type
Comchip Technology ACGRBT301-HF	175 ░C	-65 C	200 V	Standard	1 V	AEC-Q101	Automotive	5 µA	3 A	23 pF	200 mA, 500 ns	2-SMD, No Lead	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 200 V 3A Surface Mount 2114/DO-214AA

Technical documentation and resources

No documents available
